Same model may have multiple batches, images only for reference.

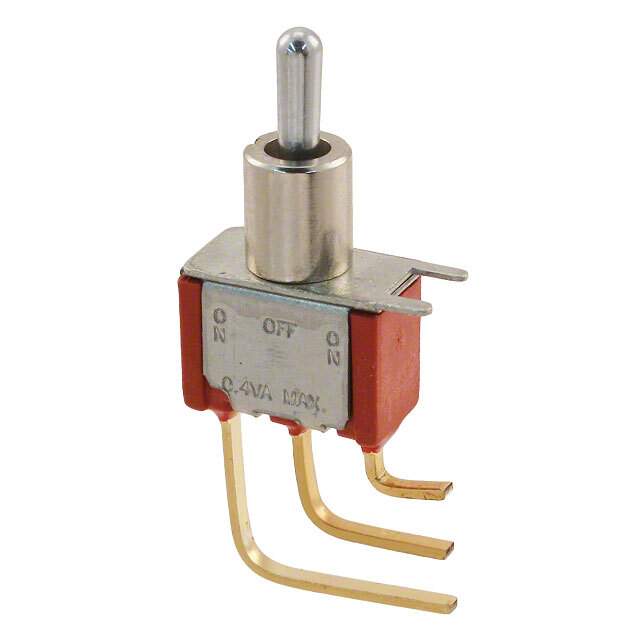

7105MD9AV2BE Real Image
Same model may have multiple batches, images only for reference.

7105MD9AV2BE

Part No 7105MD9AV2BE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 20V / Toggle Switch SPDT Through Hole, Right Angle, Vertical
Datasheet
7105MD9AV2BE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr C&K
Series 7000
Package Tray
Mounting Type Through Hole, Right Angle, Vertical
Circuit SPDT
Switch Function Mom-Off-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard Round
Actuator Length 6.86mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 40,000 Cycles
Base Product Number 7105MD
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1340629-7105MD9AV2BE
Ultra Librarian 3D Model Ultra Librarian 7105MD9AV2BE CAD Model

Description

The 1340629-7105MD9AV2BE is a toggle switch manufactured by C&K Components.

  • Series: 7000
  • Package: Tray
  • Mounting Type: Through Hole, Right Angle, Vertical
  • Circuit: SPDT
  • Switch Function: Mom-Off-Mom
  • Actuator Type: Standard Round
  • Electrical Life: 40,000 Cycles
  • Illumination: Non-Illuminated
  • ECCN: EAR99
  • Current Rating (Amps): 0.4VA (AC/DC)
  • Operating Temperature: -30°C ~ 85°C
  • REACH Status: Affected
  • HTSUS: 8536.50.9065
  • Other Names: 2266-SET2LBKRDGNAUEE, 752010-6000, SET2L BK RD GN AU EE
