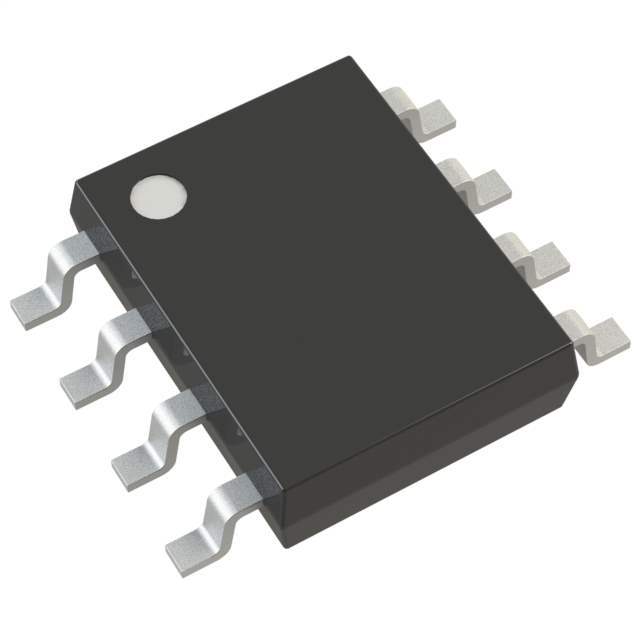

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1308000-BY25Q64ESSIG(R)
Category Integrated Circuits (ICs)> Memory> Memory
Mfr BYTe Semiconductor
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR (SLC)
Memory Size 64Mbit
Memory Organization 8M x 8
Memory Interface SPI - Quad I/O
Ultra Librarian 3D Model Ultra Librarian BY25Q64ESSIG(R) CAD Model

Description

The BY25Q64ES is 64M-bit Serial Peripheral Interface (SPI) Flash memory, and supportstheDual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (/WP), andI/O3(/HOLD). The Dual I/O data is transferred with speed of 100Mbits/s and the Quad I/O&Quadoutput data is transferred with speed of 200Mbits/s. The device uses a single lowvoltagepower supply, ranging from 2.7 Volt to 3.6 Volt
