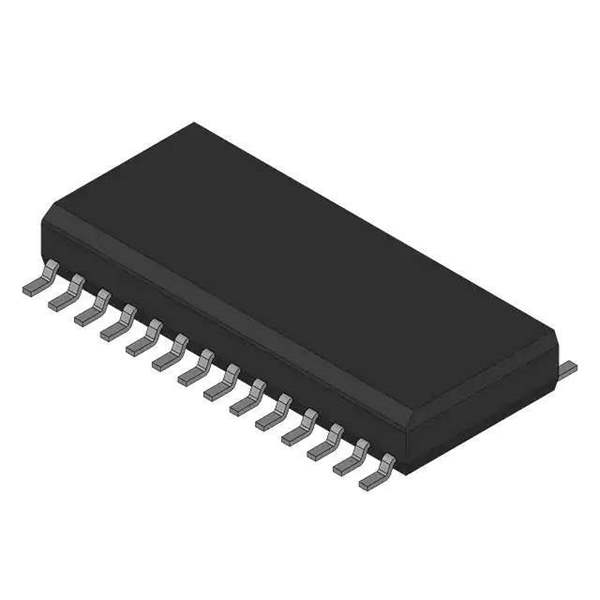

DAC715UK Real Image
Same model may have multiple batches, images only for reference.

DAC715UK

Part No DAC715UK
Manufacturer Burr-Brown (TI)
Catalog Data Acquisition - Digital to Analog Converters (DAC)
Description IC DAC 16BIT V-OUT 28SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Data Acquisition - Digital to Analog Converters (DAC)
Mfr Burr-Brown (TI)
Package Bulk
Product Status Active
Programmable Not Verified
Number of Bits 16
Number of D/A Converters 1
Settling Time 10µs
Output Type Voltage - Buffered
Differential Output No
Data Interface Parallel
Reference Type Internal
Voltage - Supply, Analog ±11.4V ~ 16.5V
Voltage - Supply, Digital ±11.4V ~ 16.5V
INL/DNL (LSB) ±2, ±2
Architecture R-2R
Temperature Range - Operating 0°C ~ 70°C
Package / Case 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package 28-SOIC
Mounting Type Surface Mount
Standard Package 9 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 583820-DAC715UK
Ultra Librarian 3D Model Ultra Librarian DAC715UK CAD Model

Description

The 583820-DAC715UK is a digital-to-analog converter (DAC) integrated circuit (IC) from Burr-Brown (TI).

  • Category: Data Acquisition
  • Package: Bulk
  • Standard Package: 9 pieces
  • Output Type: Voltage-Buffered
  • Architecture: R-2R
  • Resolution: 16 bits
  • Data Interface: Parallel
  • Supply Voltage (Analog): ±11.4V to ±16.5V
  • Supply Voltage (Digital): ±11.4V to ±16.5V
  • Settling Time: 10μs
  • D/A Converters: 1
  • Mounting: Surface Mountable
  • Package: 28-SOIC
  • Operating Temperature Range: 0°C to 70°C
  • ECCN: EAR99
  • HTSUS Code: 8542.39.0001
  • Status: Active
