Same model may have multiple batches, images only for reference.

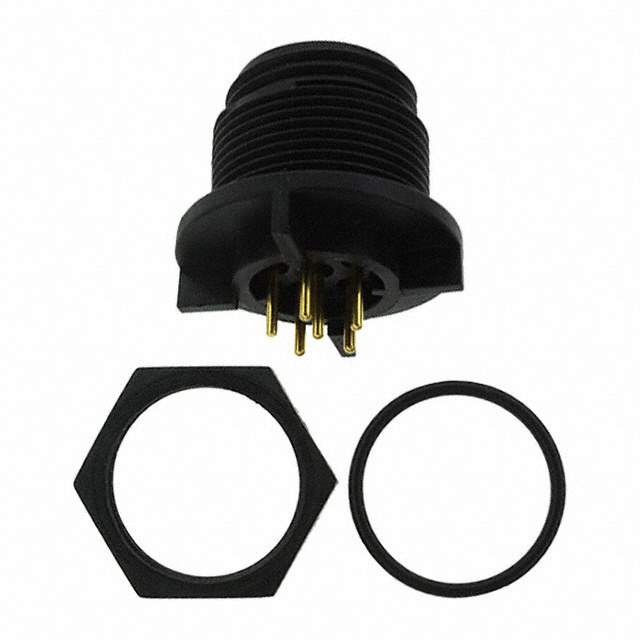

PX0413/06S/PC Real Image
Same model may have multiple batches, images only for reference.

PX0413/06S/PC

Part No PX0413/06S/PC
Manufacturer Bulgin
Catalog Circular Connectors
Description CONN RCPT FMALE 6POS GOLD SOLDER / 6 (Power) Position Circular Connector Receptacle, Female Sockets Solder
Datasheet
PX0413/06S/PC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Bulgin
Series Buccaneer® 400
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 6 (Power)
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Termination Solder
Fastening Type Threaded
Orientation Keyed
Primary Material Plastic
Shell Material Polyamide (PA), Nylon
Contact Finish - Mating Gold
Color Black
Ingress Protection IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating UL94 V-0
Features UV Resistant
Shielding Unshielded
Current Rating (Amps) 5A
Voltage Rating 125VAC/DC
Temperature Range - Operating -40°C ~ 80°C
Contact Material Copper Alloy
Base Product Number PX0413
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Other Names 708-1082,PX041306SPC
Standard Package 50
Win Source Part Number 1038591-PX0413/06S/PC
Ultra Librarian 3D Model Ultra Librarian PX0413/06S/PC CAD Model

Description

The PX0413/06S/PC is a Circular Connector from Bulgin.

  • Positions: 6 (Power)
  • Color: Black
  • UV Resistant: Yes
  • Connector Type: Receptacle, Female Sockets
  • Fastening: Threaded
  • Voltage Rating: 125VAC/DC
  • Shielded: Unshielded
  • Shell Material: Polyamide (PA), Nylon
  • Shell Finish: -
  • Mounting: Panel Mount and Through Hole
  • Operating Temperature: -40°C to 80°C
  • Ingress Protection: IP68/IP69K (Dust Tight, Water-Resistant, Waterproof)
  • Package: Bulk
  • Standard Package: 50
