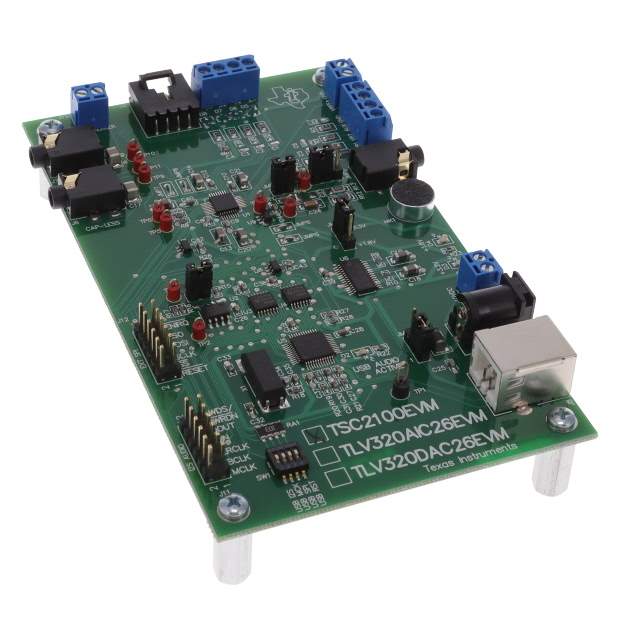

The TSC2100EVM is a comprehensive evaluation module designed by Texas Instruments to facilitate the assessment and development of the TSC2100, a versatile touch screen controller with integrated audio interface. This powerful evaluation module (EVM) serves as a robust tool for designers and engineers to explore the features and performance of the TSC2100 in various applications.

Key Features

• Integrated Touch Screen Controller: The TSC2100 incorporates a high-performance 4-wire resistive touch screen controller that ensures precise and responsive touch detection, making it ideal for portable devices.
• Audio Interface: Along with the touch screen controller, the device features a stereo audio codec with programmable volume control, providing a complete audio solution for multimedia applications.
• Flexible Connectivity: The EVM includes a variety of interface options, including a USB connection for easy interfacing with a host computer, facilitating rapid prototyping and testing.
• Comprehensive Software Support: Users can take advantage of the included software package that offers a user-friendly GUI for configuring and monitoring the TSC2100's performance.

Applications

The TSC2100EVM is suitable for a wide range of applications that require both touch screen functionality and audio processing capabilities. These include but are not limited to:

• Portable Media Players
• Handheld Terminals
• Personal Digital Assistants (PDAs)
• Point-of-Sale (POS) Systems

Technical Specifications

The TSC2100EVM is designed to showcase the technical specifications of the TSC2100, which include a 12-bit analog-to-digital converter (ADC) for touch screen control, a 16-bit digital-to-analog converter (DAC) for audio playback, and an audio ADC with a 94 dB signal-to-noise ratio (SNR) for high-quality recording.

Package Contents

The evaluation module package includes the TSC2100EVM board, necessary cables for connectivity, and documentation to help users get started quickly. Software and drivers can be downloaded from the Texas Instruments website to support various operating systems.

With the TSC2100EVM, Texas Instruments provides a comprehensive platform for developers to innovate and create sophisticated touch and audio-enabled devices with ease and precision.
