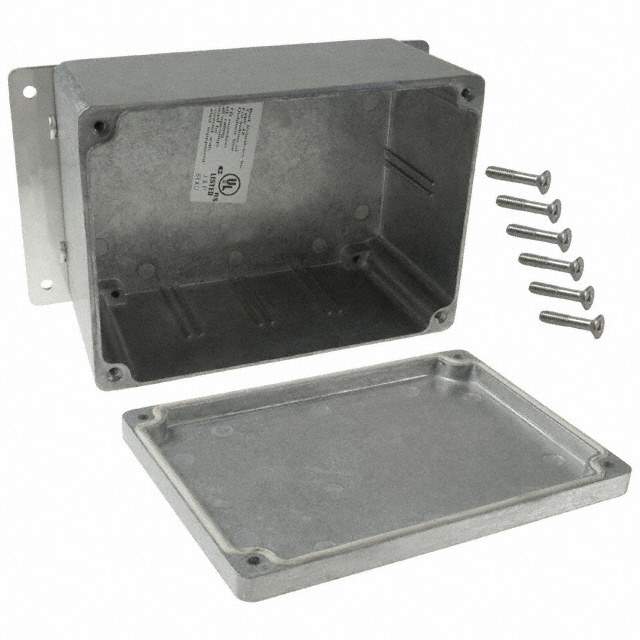

AN-2805 Real Image
Same model may have multiple batches, images only for reference.

AN-2805

Part No AN-2805
Manufacturer Bud Industries
Catalog Boxes, Enclosures, Racks
Description BOX ALUM NAT 5.830"L X 4.252"W / Box Metal, Aluminum Natural Cover Included 5.830" L x 4.252" W (148.08mm x 108.00mm) X 2.950" (74.93mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Boxes, Enclosures, Racks>Boxes
Mfr Bud Industries
Series AN
Package Bulk
Container Type Box
Dimension 5.830" L x 4.252" W (148.08mm x 108.00mm)
Height 2.950" (74.93mm)
Area (L x W) 24.8in² (160cm²)
Design Cover Included
Material Metal, Aluminum
Color Natural
Thickness 0.130" (3.30mm)
Features Card Guides, Mounting Flange, PCB Supports, Watertight
Ratings IP65, NEMA 1,2,4,4X,12,13, UL-508
Weight 1.8 lbs (816.5 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 7612.90.1090
Other Names AN2805,AN 2805,377-1436
Standard Package 1
Win Source Part Number 963206-AN-2805
Ultra Librarian 3D Model Ultra Librarian AN-2805 CAD Model

Description

The AN-2805 is a high-quality metal, aluminum box enclosure that is manufactured by Bud Industries.

  • Win Source Part Number: 963206-AN-2805
  • Designed for: boxes, enclosures, and racks
  • Series: AN
  • Design: watertight, with card guides, mounting flange, and PCB supports
  • Thickness: 0.130 inches (3.30mm)
  • Height: 2.950 inches (74.93mm)
  • Area: 24.8in² (160cm²)
  • Design: unique design with a cover included
  • Rated: IP65, NEMA 1,2,4,4X,12,13, UL-508
  • Importance: an essential component for various applications
  • Note: multiple cross-reference alternative parts
