Product Overview: PIC16C65A/JW from Microchip Technology
The PIC16C65A/JW is a high-performance, CMOS, fully-static, 8-bit microcontroller fabricated by Microchip Technology. It is part of the PIC16CXX family of microcontrollers that are renowned for their excellent power efficiency and processing speed. This microcontroller is designed to support a wide range of applications, from automotive systems to consumer electronics, and it is particularly well-suited for applications requiring complex logic operations and a modest amount of direct memory access.
The PIC16C65A/JW features a robust architecture with a 14-bit wide instruction set that allows for complex instructions and addressing modes. With its 8-bit data bus, it can handle a variety of data types with ease. The device offers 4KB of EPROM program memory, making it ideal for applications with fixed program code, and 192 bytes of RAM for variable data storage.
One of the key features of this microcontroller is its versatility in I/O operations. It provides 33 dedicated I/O pins, allowing for extensive interface capabilities with peripheral devices. It supports a wide operating voltage range from 4.5V to 5.5V, which is typical for many digital circuits, ensuring compatibility with a range of external components.
The PIC16C65A/JW also comes with built-in features that enhance its performance and ease of use. These include an 8-level deep hardware stack, which simplifies the handling of nested interrupts and subroutine calls, and a power-on reset (POR) function that ensures the microcontroller starts up correctly every time it is powered on. Additionally, the microcontroller has a programmable code-protection feature to prevent unauthorized reading or copying of the program memory, which is crucial for proprietary applications.

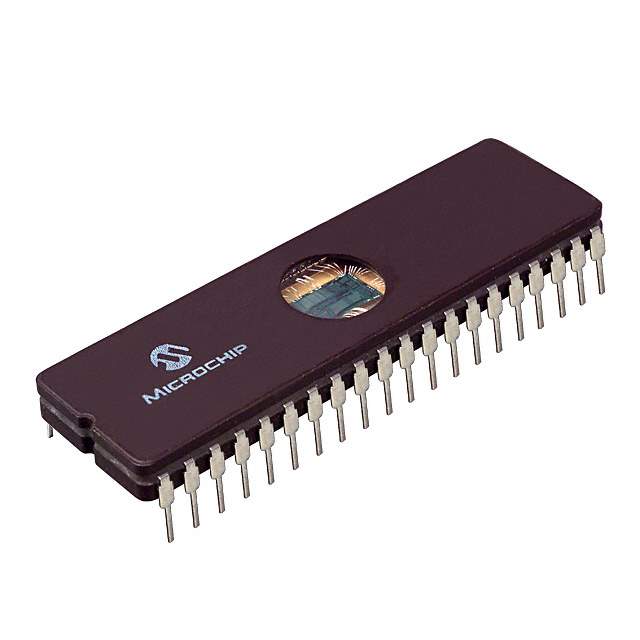

Its JW package indicates that this particular model is encased in a windowed ceramic package, which is used for devices where EPROM erasing is required. This feature allows developers to reuse and reprogram the device multiple times during the development and prototyping phase, offering flexibility and cost savings.
Overall, the PIC16C65A/JW microcontroller is a reliable and adaptable component that offers a balance between performance and power consumption, making it an excellent choice for a multitude of embedded system applications.
