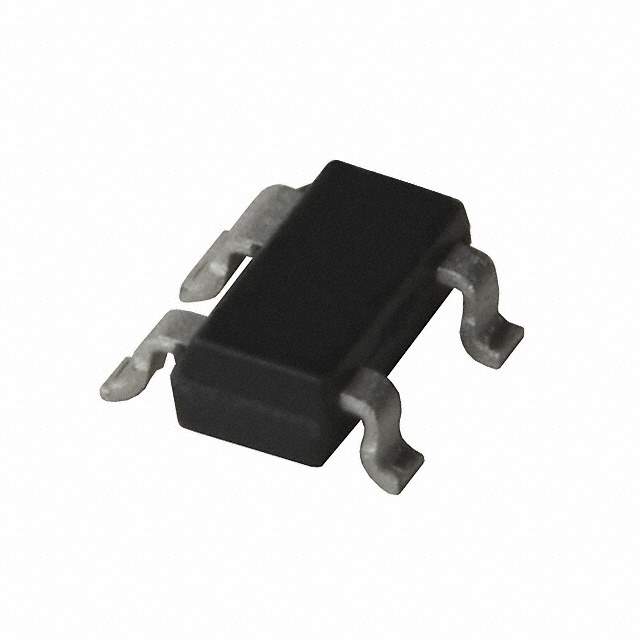

MSA-0611-TR1 Real Image
Same model may have multiple batches, images only for reference.

MSA-0611-TR1

Part No MSA-0611-TR1
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP MMIC BIPOLAR 40MA SOT-143
Datasheet
MSA-0611-TR1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 0Hz to 700MHz
P1dB 2dBm
Gain 16dB to 18dB
Noise Figure 3dB
RF Type ISM, PCS
Supply Voltage - Operating 2.6 V to 4 V
Operating Supply Current 10mA to 30mA
Test Frequency 500MHz
Case / Package SOT-143-4
Win Source Part Number 108009-MSA-0611-TR1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MSA-0611-TR1 CAD Model

Description

The Broadcom Limited MSA-0611-TR1 is an obsolete electronic component that has a test frequency of 500MHz.

  • Frequency Range: 0Hz to 700MHz
  • Gain: 16dB to 18dB
  • Noise Figure: 3dB
  • P1dB: 2dBm
  • RF Type: ISM and PCS frequencies
  • Case/Package: SOT-143-4
  • Operating Supply Current: 10mA to 30mA
  • Supply Voltage: 2.6V to 4V
  • Supply and Demand Status: balanced
