MGA-565P8-TR1 Broadcom Limited MGA-565P8-TR1 Real Image MGA-565P8-TR1 label picture
Same model may have multiple batches, images only for reference.
MGA-565P8-TR1 Broadcom Limited MGA-565P8-TR1 Real Image MGA-565P8-TR1 label picture
MGA-565P8-TR1 Broadcom Limited MGA-565P8-TR1 Real Image MGA-565P8-TR1 label picture
Same model may have multiple batches, images only for reference.

MGA-565P8-TR1

Part No MGA-565P8-TR1
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP BUFFER RFIC 2GHZ 8-LPCC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Frequency 0Hz to 3.5GHz
Gain 21.8dB
RF Type Cellular, PCS
Supply Voltage - Operating 3 V to 5 V
Operating Supply Current 67mA
Test Frequency 2GHz

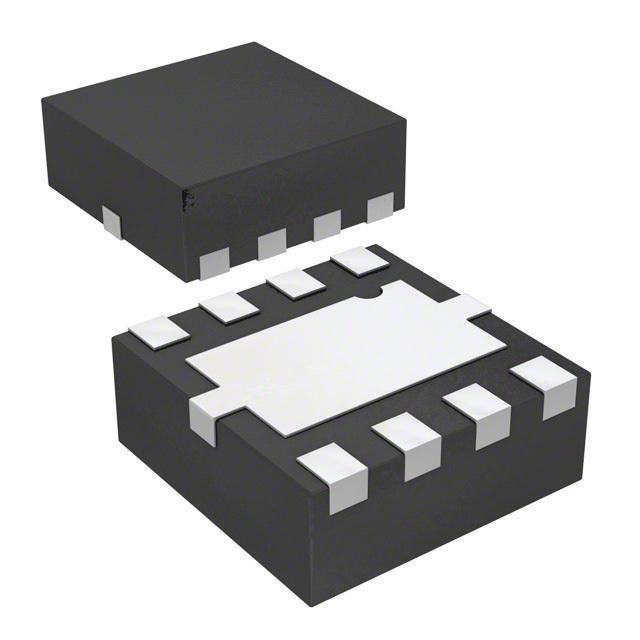

Case / Package 8-LPCC (2x2)
Win Source Part Number 023206-MGA-565P8-TR1
Family Name MGA-565P8
Introduction Date April 01, 2004
ECCN 5A991.g
Country of Origin China, Malaysia
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian MGA-565P8-TR1 CAD Model

Description

The MGA-565P8-TR1 is a RF amplifier from Broadcom Limited.

  • Gain: 21.8dB
  • Test Frequency: 2GHz
  • Frequency Range: 0Hz to 3.5GHz
  • RF Type: Cellular and PCS
  • Package: 8-LPCC (2x2)
  • Supply Voltage: 3V to 5V
  • Operating Supply Current: 67mA
  • Usage: Common-used part and has a high popularity in the market
  • Quantity per Package: 3k pcs
