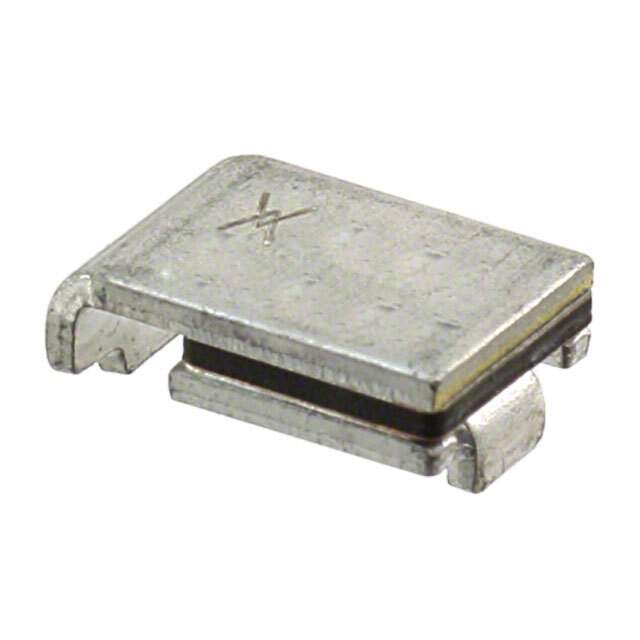

RF1636-000 Real Image
Same model may have multiple batches, images only for reference.

RF1636-000

Part No RF1636-000
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description Ptc Reset Fuse 16V 1.04A 2SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package SMD/SMT
Hold Current 1.04 A
Length 7.366 mm
Max Current Rating 40 A
Mount Surface Mount
Number of Pins 2
RoHS Compliant
Thickness 3.175 mm
Time to Trip 20 s
Trip Current 2.46 A
Width 5.1308 mm
Win Source Part Number 1178445-RF1636-000
Categories PTC Resettable Fuses
Manufacturer Littelfuse Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RF1636-000 CAD Model

Description

The RF1636-000 is a 2-pin SMD/SMT resettable fuse from Littelfuse Inc.

  • Pins: 2
  • Mounting: SMD/SMT
  • Length: 7.366 mm
  • Width: 5.1308 mm
  • Thickness: 3.175 mm
  • Hold Current: 1.04 A
  • Trip Current: 2.46 A
  • Maximum Current: 40 A
  • Time to Trip: 20 s
  • RoHS Compliant: Yes
  • Popularity: Medium
  • Supply/Demand: Limited
