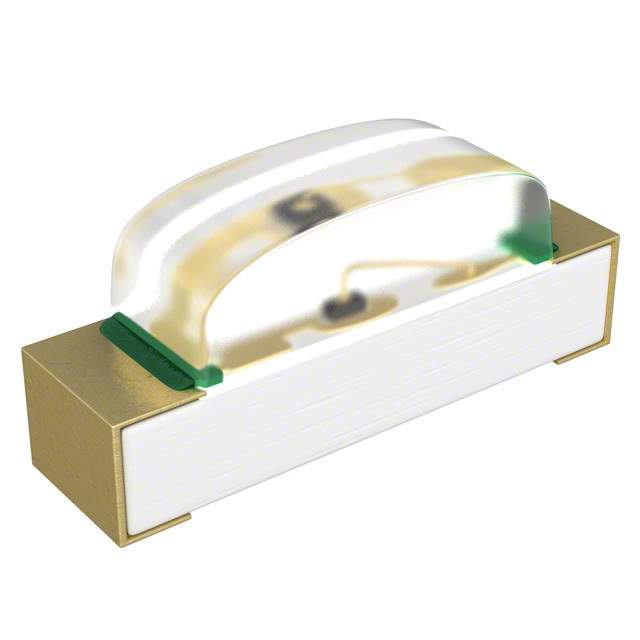

HSMS-C120 Real Image
Same model may have multiple batches, images only for reference.

HSMS-C120

Part No HSMS-C120
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RED CLEAR 2SMD R/A
Datasheet
HSMS-C120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Red
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 10mcd
Lens Style/Size Rectangle with Domed Top, 1.20mm x 0.60mm
Forward Voltage 2.1V
Current - Test 20mA
Viewing Angle 155°
Mounting Surface Mount, Right Angle
Wavelength - Dominant 626nm
Wavelength - Peak 630nm
Case / Package Chip LED
Height (Max) 0.60mm
Win Source Part Number 1044122-HSMS-C120
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HSMS-C120 CAD Model

Description

The Broadcom Limited HSMS-C120 is a surface mount right angle chip LED with a dominant wavelength of 626nm and a peak wavelength of 630nm.

  • Package: reel-TR package
  • Millicandela Rating: 10mcd
  • Viewing Angle: 155°
  • Forward Voltage: 2.1V
  • Lens Style/Size: rectangle with a domed top, measuring 1.20mm x 0.60mm
  • Lens Color: colorless
  • Lens Transparency: clear
  • Current-Test: 20mA
  • Height (max): 0.60mm
  • Device Category: optoelectronics
  • Supply and demand status: balanced
