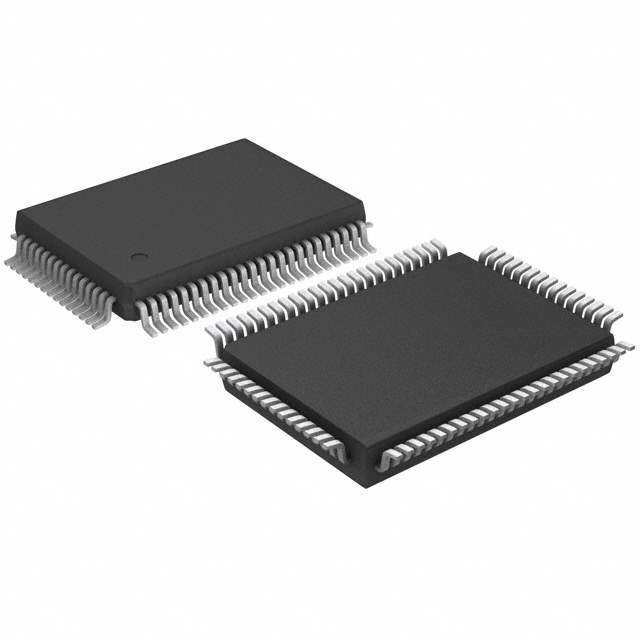

The HV507PG-G is a high-voltage, serial-to-parallel converter with open-drain outputs, designed and manufactured by Microchip Technology. This integrated circuit is specifically engineered to meet the needs of applications requiring high-voltage operation and the ability to drive large capacitive loads with high speed. It is a versatile component that is particularly well-suited for use in printers, LCD displays, and a variety of industrial applications.

Key Features

• High-Voltage Outputs: The HV507PG-G can handle up to 80V, making it ideal for driving a wide range of high-voltage applications.
• Serial-to-Parallel Conversion: It features a 32-bit serial input to 32-bit parallel output shift register, which simplifies the interface with microcontrollers and saves I/O pins.
• Open-Drain Outputs: The open-drain outputs allow for flexible voltage levels and the ability to connect multiple outputs in parallel to drive higher current loads.
• High-Speed Operation: The device is capable of high-speed data transfer, which is essential for applications that require quick response times.
• CMOS Technology: The use of CMOS technology ensures low power consumption, which is critical for portable and power-sensitive applications.
• Output Voltage Clamping: Integrated diodes clamp the output voltage to protect the device and the load from over-voltage conditions.

Applications

• Industrial Automation
• Electrostatic Printers and Plotters
• Liquid Crystal Display (LCD) Modules
• LED Displays
• Medical Imaging Systems

The HV507PG-G is available in a 44-pin PLCC package, providing a compact solution for space-constrained applications. Its robust design and high reliability make it an excellent choice for designers looking to incorporate high-voltage capabilities into their systems. Microchip Technology's commitment to quality ensures that the HV507PG-G delivers consistent performance and longevity, making it a trusted component for your high-voltage design projects.
