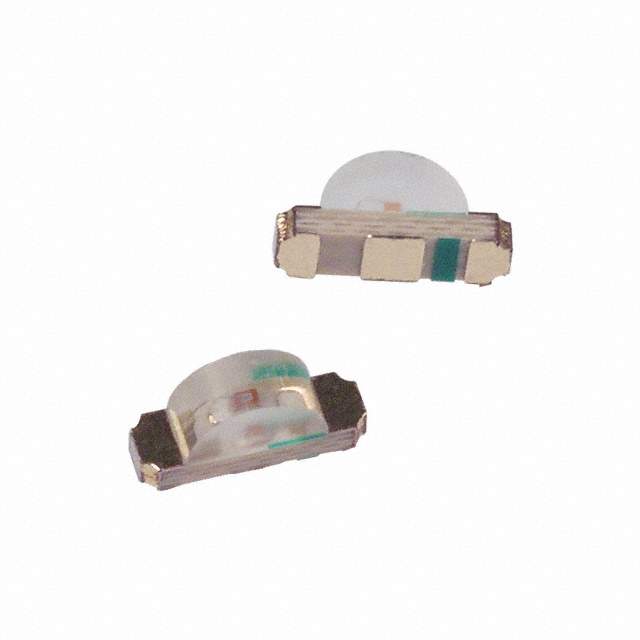

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Broadcom Limited
Packaging Reel
Color Red
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 10mcd
Lens Style Rectangle with Domed Top
Lens Size 2.60mm x 1.00mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 130°
Mounting Style Surface Mount, Right Angle
Wavelength - Dominant 626nm
Wavelength - Peak 630nm
Manufacturer Package 2-SMD, No Lead
Supplier Device Package Chip LED
Dimension 3.20mm L x 1.50mm W
Height (Maximum) 1.00mm
Part Number Series HSMS-C110
Manufacturer Pack Quantity 3,000
MSL Level 2A (4 Weeks)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807851-HSMS-C110
Ultra Librarian 3D Model Ultra Librarian HSMS-C110 CAD Model

Description

This chip LED is manufactured by Broadcom Limited.

  • Millicandela Rating: 10mcd
  • Voltage Forward (Vf): 2.1V
  • Current Test: 20mA
  • Wavelength Dominant: 626nm
  • Wavelength Peak: 630nm
  • Package: 2-SMD, no lead
  • Dimension: 3.20mm L x 1.50mm W
  • Lens Style: Rectangle, domed top
  • Lens Size: 2.60mm x 1.00mm
  • Height: 1.00mm
  • Popularity: Medium
  • Supply and Demand Status: Balanced
