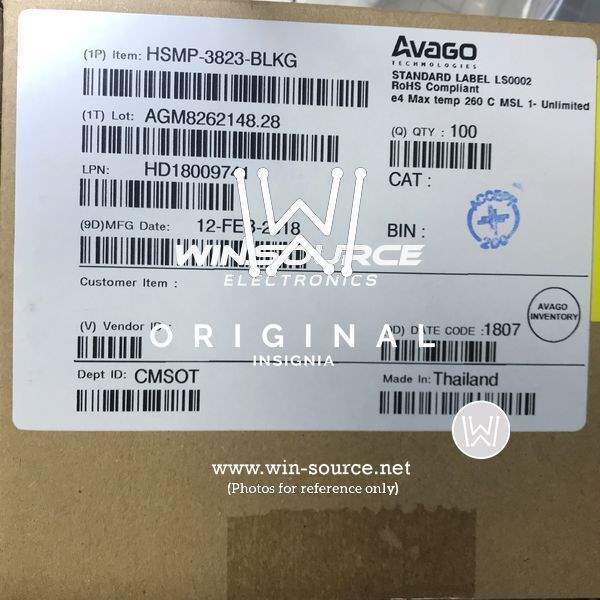

HSMP-3823-BLKG Real Image HSMP-3823-BLKG label picture
Same model may have multiple batches, images only for reference.
HSMP-3823-BLKG Real Image HSMP-3823-BLKG label picture
HSMP-3823-BLKG Real Image HSMP-3823-BLKG label picture
Same model may have multiple batches, images only for reference.

HSMP-3823-BLKG

Part No HSMP-3823-BLKG
Manufacturer Broadcom Limited
Catalog RF Diodes
Description DIODE PIN SWITCH 50V SOT23-3 / Diode PIN Attenuator/Switch 50V 3-Pin SOT-23 Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Broadcom Limited
Packaging Cut Strip
Diode Type PIN - 1 Pair Common Anode
Voltage - Peak Reverse (Maximum) 50V
Current - Max 1A
Capacitance @ Vr, F 0.8pF @ 20V, 1MHz
Resistance @ If, F 600 mOhm @ 10mA, 100MHz
Operating Temperature Range 150°C (TJ)
Package TO-236-3, SC-59, SOT-23-3
Manufacturer Package SOT-23-3
Win Source Part Number 776205-HSMP-3823-BLKG
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name HSMP-3823
Introduction Date April 01, 2004
ECCN EAR99
Country of Origin Malaysia, Thailand
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian HSMP-3823-BLKG CAD Model

Description

The HSMP-3823-BLKG is a PIN diode manufactured by Broadcom Limited.

  • Maximum Current: 1A
  • Capacitance: 0.8pF @ 20V, 1MHz
  • Packaging: Cut Strip
  • Power Dissipation: Maximum
  • Voltage Rating: 50V
  • Halogen-Free: Yes
  • Supply and Demand Status: Limited
  • Popularity: Medium
