Same model may have multiple batches, images only for reference.

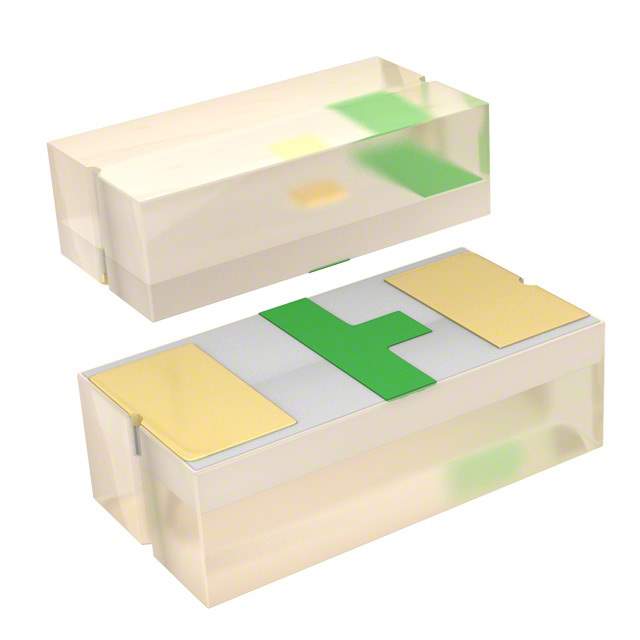

HSMG-C280 Real Image
Same model may have multiple batches, images only for reference.

HSMG-C280

Part No HSMG-C280
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GREEN DIFFUSED 0402 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel
Color Green
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 15mcd
Lens Style Rectangle with Flat Top
Lens Size 1.00mm x 0.50mm
Voltage - Forward (Vf) 2.2V
Current - Test 20mA
Viewing Angle 130°
Mounting Style SMD
Wavelength - Dominant 572nm
Wavelength - Peak 570nm
Manufacturer Package 0402 (1005 Metric)
Supplier Device Package 0402
Parts Dimension 1.00mm L x 0.50mm W
Height (Maximum) 0.40mm
Family Part Number HSMG-C280
Manufacturer Pack Quantity 1
MSL Level 2A (4 Weeks)
Win Source Part Number 759610-HSMG-C280
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HSMG-C280 CAD Model

Description

The Broadcom Limited 759610-HSMG-C280 is a green-colored optoelectronic component that has a high popularity in the market.

  • Viewing Angle: 130 degrees
  • Millicandela Rating: 15mcd
  • Lens Style: Flat Top
  • Lens Size: 1.00mm x 0.50mm
  • Manufacturer Package: 0402 (1005 Metric)
