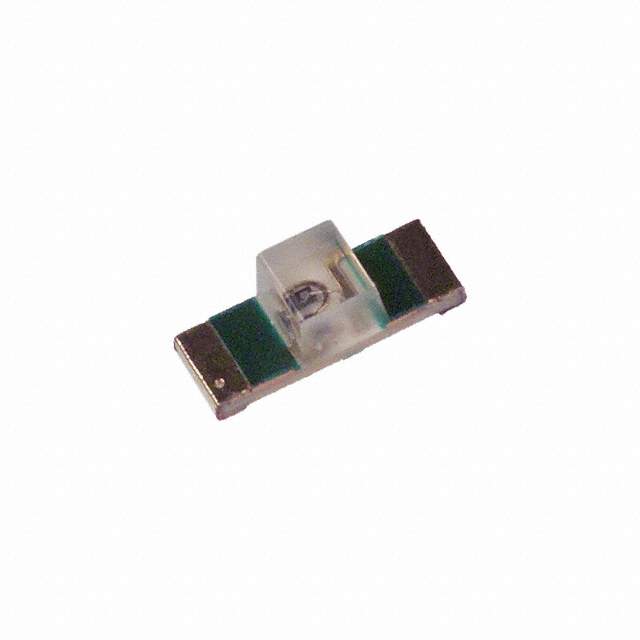

HSMG-C265 Real Image
Same model may have multiple batches, images only for reference.

HSMG-C265

Part No HSMG-C265
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED Uni-Color Green 570nm 2-Pin Chip LED T/R / LED GREEN DIFFUSED 1305 SMD REV
Datasheet
HSMG-C265 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Green
Lens Color White
Lens Transparency Diffused
Millicandela Rating 15mcd
Lens Style/Size Rectangle with Flat Top, 1.25mm x 1.20mm
Forward Voltage 2.2V
Current - Test 20mA
Viewing Angle 170°
Mounting Surface Mount, Bottom Entry
Wavelength - Dominant 572nm
Wavelength - Peak 570nm
Case / Package Chip LED
Height (Max) 1.10mm
Win Source Part Number 1044011-HSMG-C265
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name HSMG-C265
Introduction Date January 01, 2002
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian HSMG-C265 CAD Model

Description

The HSMG-C265 is a chip LED from Broadcom Limited.

  • Color: Green
  • Mounting Style: Surface Mount, Bottom Entry
  • Forward Voltage: 2.2V
  • Viewing Angle: 170 degrees
  • Lens Color: White
  • Transparency: Diffused
  • Millicandela Rating: 15mcd
  • Shape: Rectangular with a flat top
  • Size: 1.25mm x 1.20mm
  • Family: HSMG-C265
  • Category: Optoelectronic product
  • Supply and Demand: Balanced
