Same model may have multiple batches, images only for reference.

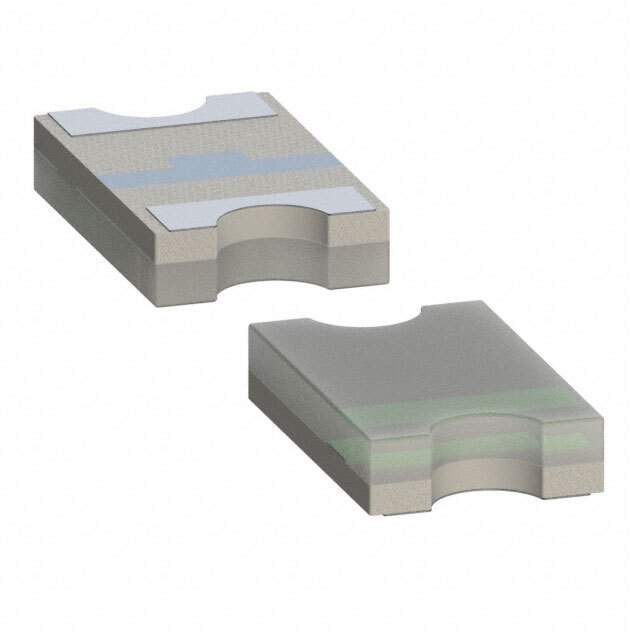

HSMG-C177 Real Image
Same model may have multiple batches, images only for reference.

HSMG-C177

Part No HSMG-C177
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GREEN DIFFUSED 0805 SMD
Datasheet
HSMG-C177 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Green
Lens Color White
Lens Transparency Diffused
Millicandela Rating 15mcd
Lens Style/Size Rectangle with Flat Top, 2.00mm x 1.25mm
Forward Voltage 2.2V
Current - Test 20mA
Viewing Angle 130°
Mounting SMD (SMT)
Wavelength - Dominant 572nm
Wavelength - Peak 570nm
Case / Package Chip LED
Height (Max) 0.40mm
Win Source Part Number 1044008-HSMG-C177
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name HSMG-C177
Introduction Date January 01, 2002
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian HSMG-C177 CAD Model

Description

The HSMG-C177 from Broadcom Limited is a chip LED that provides a millicandela rating of 15mcd and a viewing angle of 130°.

  • Millicandela Rating: 15mcd
  • Viewing Angle: 130°
  • Forward Voltage: 2.2V
  • Current Test: 20mA
  • Wavelength Dominant: 572nm
  • Wavelength Peak: 570nm
  • Lens Style/Size: Rectangle with Flat Top, 2.00mm x 1.25mm
  • Lens Color: Diffused White
  • Halogen-Free: Yes
  • Packaging: Reel
