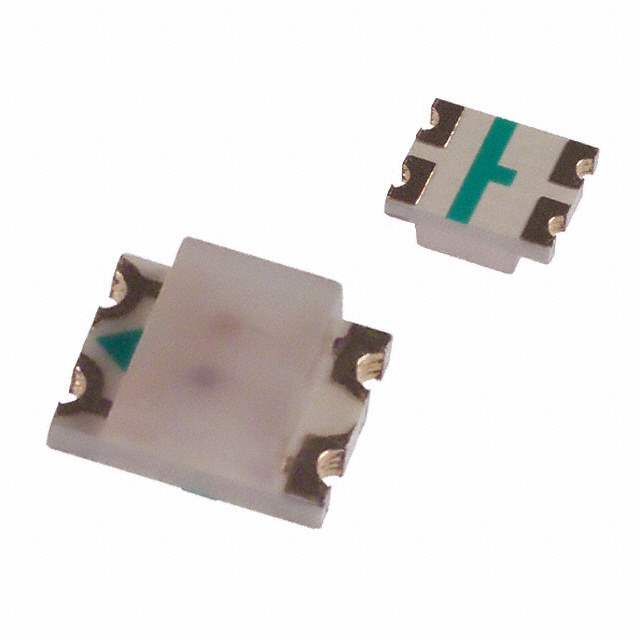

The Broadcom Limited chip LED is a high-quality electronic component that is widely used in optoelectronic applications. This chip LED comes in a reel-tr package and has a rectangular shape with a flat top. It has a diffused lens and a white color. The LED has a common anode configuration and a viewing angle of 135° for red, 130° for green, and 125° for blue. The forward voltage is 1.9V for red, 3.5V for green, and 3.5V for blue. The LED has a millicandela rating of 90mcd for red, 120mcd for green, and 40mcd for blue. The wavelength-dominant is 626nm for red, 525nm for green, and 470nm for blue while the wavelength-peak is 637nm for red, 523nm for green, and 468nm for blue. The LED has a height of 1.10mm and is tested at 20mA for red, green, and blue.
