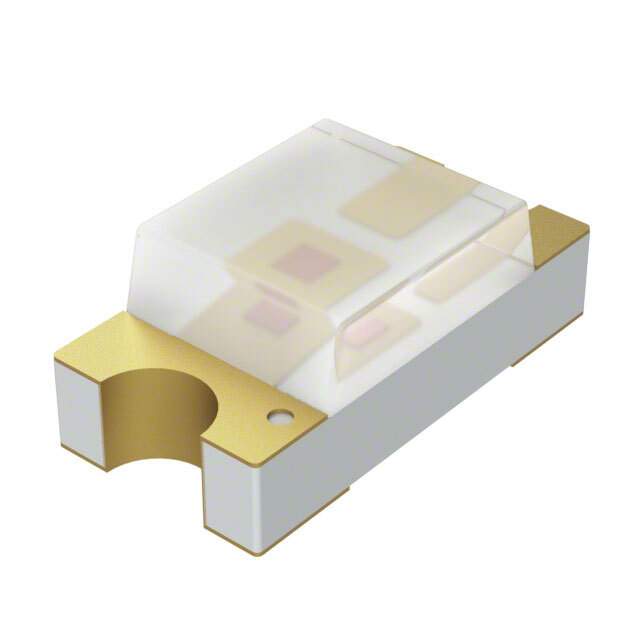

The HSMC-C130 is a subminiature AllnGaP Yellow-Green surface mount LED from Broadcom Limited. This LED is designed for applications requiring high brightness and reliability, offering excellent performance in a small form factor. It is commonly used in various indicator and display applications due to its vibrant color and efficient light output.

Applications

• Indicator Lights: Used as status indicators on electronic devices.
• Backlighting: Employed in backlighting LCD displays and keypads.
• Panel Indicators: Found in industrial control panels and instrumentation.
• Automotive Lighting: Used in interior lighting and dashboard indicators.
• Consumer Electronics: Integrated into various consumer devices as indicator lights.

Features

• High Brightness: Provides excellent light output for visibility.
• AllnGaP Technology: Offers high efficiency and reliability.
• Subminiature Package: Allows for compact designs.
• Surface Mount Design: Enables automated assembly.
• Wide Viewing Angle: Ensures visibility from various angles.

Benefits

• Enhanced Visibility: Improves the clarity of indicators and displays.
• Energy Efficiency: Reduces power consumption and heat generation.
• Compact Design: Facilitates integration into small devices.
• Reliable Performance: Ensures long-term stability and consistent light output.
• Ease of Assembly: Simplifies manufacturing processes.

Additional Details

The HSMC-C130 LED typically has a dominant wavelength of approximately 570 nm, producing a vibrant yellow-green color. The forward voltage (VF) is typically around 2.0 to 2.5V, and the forward current (IF) is typically 20mA. The luminous intensity depends on the specific binning and operating conditions, but it generally provides a high level of brightness. The viewing angle is typically around 140 degrees, ensuring visibility from a wide range of perspectives. The package dimensions are typically 1.6 x 0.8 x 0.6 mm, making it suitable for space-constrained applications. The operating temperature range typically spans from -40°C to +85°C. This LED is RoHS compliant, adhering to environmental standards for hazardous substance reduction. The robust AllnGaP technology provides excellent resistance to degradation, ensuring long-term reliability and consistent performance. This LED is suitable for applications where a bright, reliable, and compact yellow-green indicator light is required.
