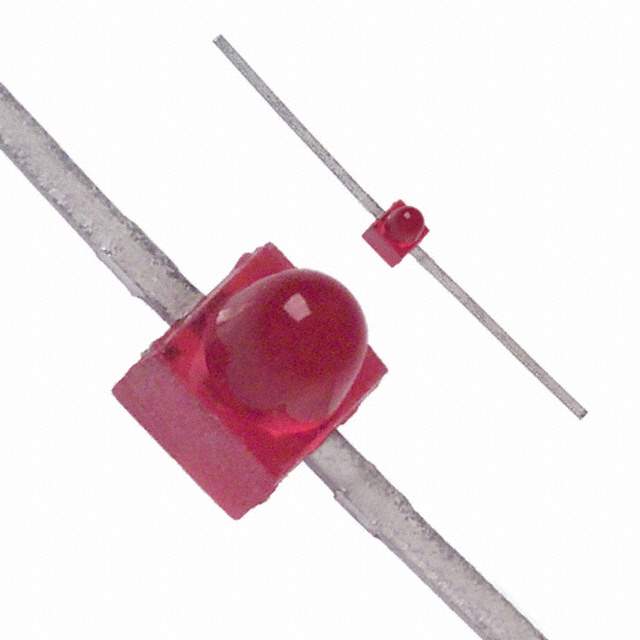

HLMP-6620 Real Image
Same model may have multiple batches, images only for reference.

HLMP-6620

Part No HLMP-6620
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description subminiature t-3/4 5-volt resistor lamps | LED RED DIFF AXIAL T/H AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Color Red
Configuration Standard
Lens Color Red
Lens Transparency Diffused
Millicandela Rating 2mcd
Lens Style Round with Domed Top
Lens Size 1.91mm Dia
Voltage - Forward (Vf) 1.8V
Current - Test 10mA
Viewing Angle 90°
Mounting Style Through Hole, Axial
Wavelength - Dominant 626nm
Wavelength - Peak 635nm
Manufacturer Package Axial, Flat Leads
Supplier Device Package Axial
Parts Dimension 2.08mm L x 2.21mm W
Height (Maximum) 2.92mm
Family Part Number HLMP-6620
Manufacturer Pack Quantity 1,000
MSL Level 2A (4 Weeks)
Win Source Part Number 1180876-HLMP-6620
Manufacturer Homepage www.fairchildsemi.com/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HLMP-6620 CAD Model

Description

The Broadcom Limited HLMP-6620 is a through-hole axial LED with a red color configuration.

  • Viewing Angle: 90 degrees
  • Lens Transparency: Diffused
  • Millicandela Rating: 2mcd
  • Wavelength-Dominant: 626nm
  • Wavelength-Peak: 635nm
  • Lens Style: Round with a domed top
  • Lens Size: 1.91mm diameter
  • Height: 2.92mm
  • Configuration: Standard
  • Leads: Flat
  • Package: Axial
  • Current Test Value: 10mA
  • Forward Voltage (Vf): 1.8V
