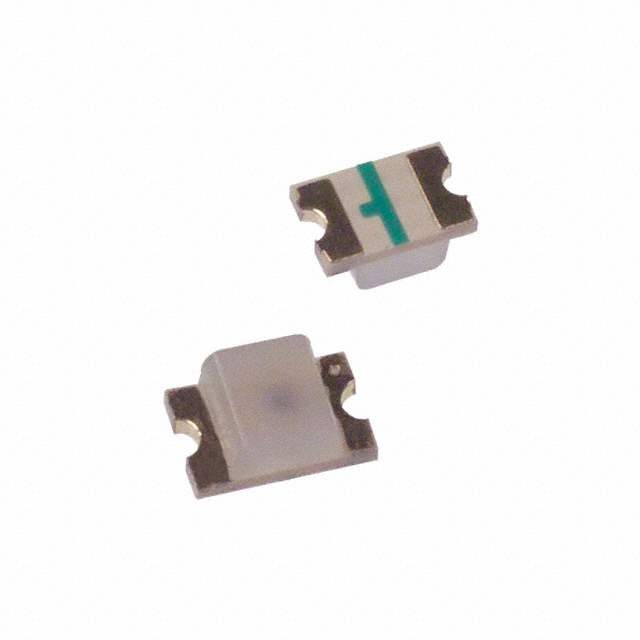

HSMG-C170 Real Image
Same model may have multiple batches, images only for reference.

HSMG-C170

Part No HSMG-C170
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GREEN DIFFUSED 0805 SMD / LED Uni-Color Green 570nm 2-Pin Chip LED T/R
Datasheet
HSMG-C170 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Green
Lens Color White
Lens Transparency Diffused
Millicandela Rating 15mcd
Lens Style/Size Rectangle with Flat Top, 1.40mm x 1.25mm
Forward Voltage 2.2V
Current - Test 20mA
Viewing Angle 170°
Mounting SMD (SMT)
Wavelength - Dominant 572nm
Wavelength - Peak 570nm
Case / Package Chip LED
Height (Max) 0.80mm
Win Source Part Number 095554-HSMG-C170
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name HSMG-C170
Introduction Date January 01, 2002
ECCN EAR99
Country of Origin China, Taiwan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian HSMG-C170 CAD Model

Description

The HSMG-C170 from Broadcom Limited is a chip LED with a rectangle flat top lens style of size 1.40mm x 1.25mm. It emits a green light with a dominant wavelength of 572nm and a millicandela rating of 15mcd. The LED has a forward voltage of 2.2V and a current of 20mA. It has a viewing angle of 170 degrees and is mounted using SMD (SMT) technology. This LED is part of the optoelectronics category and is currently in active status. The supply and demand status of this product is balanced.
