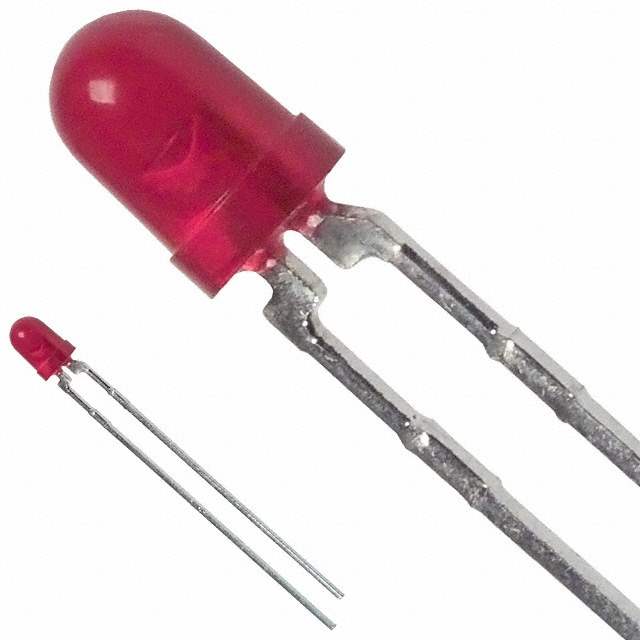

HLMP-1301 Real Image
Same model may have multiple batches, images only for reference.

HLMP-1301

Part No HLMP-1301
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RED DIFF 3MM ROUND T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Status Active
Color Red
Lens Color Red
Lens Transparency Diffused
Millicandela Rating 3.4mcd
Lens Style/Size Round with Domed Top, 3mm (T-1), 2.93mm
Forward Voltage 1.9V
Current - Test 10mA
Viewing Angle 60°
Mounting Through Hole
Wavelength - Dominant 626nm
Wavelength - Peak 635nm
Case / Package T-1 (3mm)
Height (Max) 6.35mm
Win Source Part Number 274759-HLMP-1301
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian HLMP-1301 CAD Model

Description

The HLMP-1301 is a through-hole mounting LED manufactured by Broadcom Limited. The LED has a millicandela rating of 3.4mcd and a viewing angle of 60 degrees. The dominant wavelength of the LED is 626nm and the peak wavelength is 635nm. The LED has a forward voltage of 1.9V and is available in bulk packaging. The lens style of the LED is round with a domed top and has a size of 3mm. The LED is used in various applications that require a red LED with diffused transparency.
