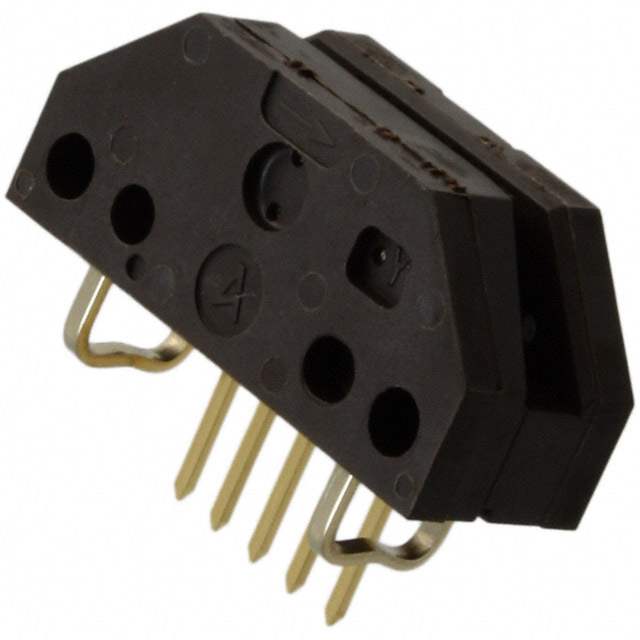

HEDS-9100#E00 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9100#E00

Part No HEDS-9100#E00
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER MODULE 2CH 200CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Status Active
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 200
Supply Voltage - Operating 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Termination Style Terminal Pins
Win Source Part Number 016920-HEDS-9100#E00
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Computers & Computer Peripherals, Building Automation, Industrial
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian HEDS-9100#E00 CAD Model

Description

The Broadcom Limited HEDS-9100#E00 is an optical encoder.

  • Application: Computers, computer peripherals, building automation, and industrial applications
  • Output Type: Quadrature (incremental)
  • Supply Voltage: 5V
  • Pulses per Revolution: 200
  • Mounting: Chassis mount
  • Termination Style: Terminal pins
