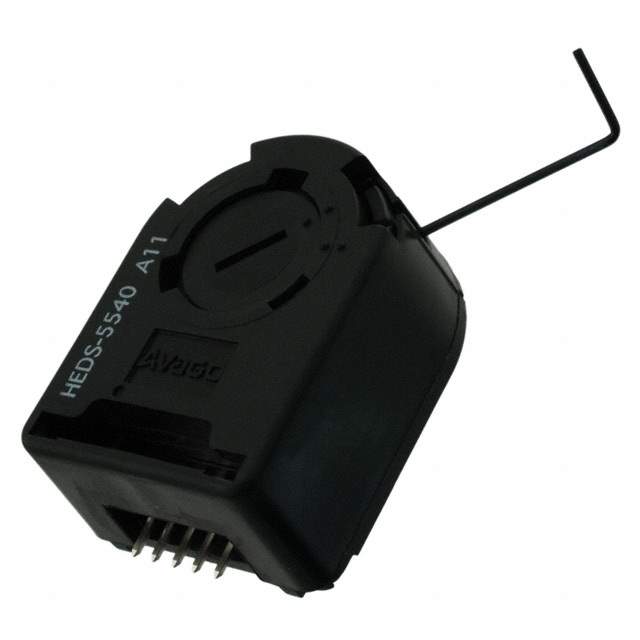

HEDS-5540#A11 Real Image
Same model may have multiple batches, images only for reference.

HEDS-5540#A11

Part No HEDS-5540#A11
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER KIT 3CH 500CPR 4MM / Optical Encoder Rotary Incremental Round with Slot Straight Digital Through Hole PC Pin 500CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 500
Operating Supply Voltage 5V
Actuator Type 4mm Open Center
Detent No
Built in Switch No
Mounting Chassis Mount, Motors
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775867-HEDS-5540#A11
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name HEDS-5540
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-5540#A11 CAD Model

Description

The Broadcom Limited 775867-HEDS-5540#A11 is an optical encoder with a quadrature with index (incremental) output type.

  • Output Type: Quadrature with index (incremental)
  • Supply Voltage: 5V
  • Built-in Switch: Not available
  • Encoder Type: Optical
  • Pulses per Revolution: 500
  • Rotational Life (cycles min): Not specified
  • Termination Style: Terminal pins
  • Orientation: Vertical
  • Mounting: Chassis mount, motors
  • Series: HEDS
  • Introduction Date: May 31, 2005
  • Estimated EOL Date: 2027
  • Halogen Free: No
  • Popularity: Medium
  • Package: 50
