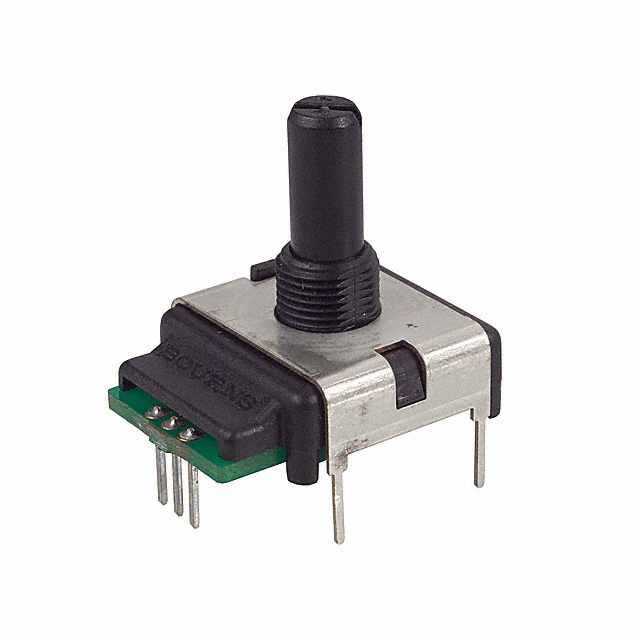

ECW1J-B24-BC0024 Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ECW1J-B24-BC0024

Part No ECW1J-B24-BC0024
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER MECHANICAL 24PPR
Datasheet
ECW1J-B24-BC0024 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Package Bulk
Product Status Obsolete
Encoder Type Mechanical
Output Type Quadrature (Incremental)
Pulses per Revolution 24
Actuator Type 1/4" Dia Slotted End
Detent Yes
Built in Switch No
Mounting Type Panel, PCB Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 200K
Ultra Librarian 3D Model Ultra Librarian ECW1J-B24-BC0024 CAD Model
