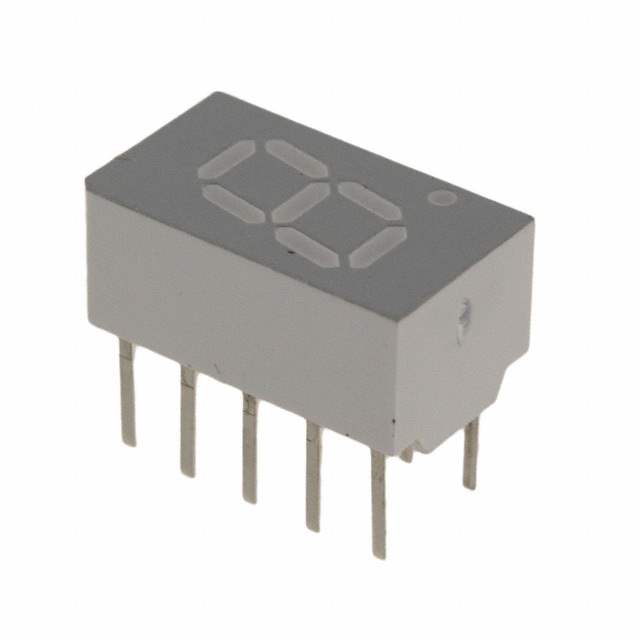

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Number of Characters 1
Digit/Alpha Size 0.30" (7.62mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Forward Voltage 1.7V
Current - Test 5mA
Millicandela Rating 3.6mcd
Wavelength - Peak 645nm
Power Dissipation (Max) 37mW
Dimension 10-DIP (0.200", 5.08mm)
Win Source Part Number 016916-HDSP-A101
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name HDSP-A101
Introduction Date May 24, 2005
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian HDSP-A101 CAD Model

Description

The 016916-HDSP-A101 is a 7-segment display module that is manufactured by Broadcom Limited. The supply and demand status is balanced and it is packaged in tube/rail. The color of this component is red and the forward voltage is 1.7V. The millicandela rating is 3.6mcd and the current test is 5mA. The peak wavelength is 645nm and the power dissipation is 37mW. The common pin is common anode and it belongs to the family of HDSP-A101.
