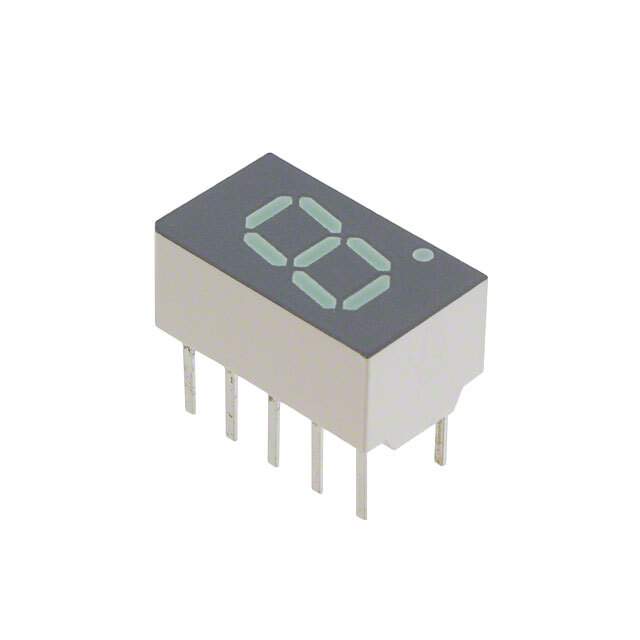

HDSP-7801-JK000 Real Image
Same model may have multiple batches, images only for reference.

HDSP-7801-JK000

Part No HDSP-7801-JK000
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description 7.6 mm (0.3 inch) Micro Bright Seven Segment Displays | DISPLAY 7SEGMENT GREEN CA 0.3"
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Number of Characters 1
Parts Dimension 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm)
Digit/Alpha Size 0.30" (7.62mm)
Display Type 7-Segment
Common Pin Common Anode
Color Green
Voltage - Forward (Vf) 2.1V
Current - Test 10mA
Millicandela Rating 6.8mcd
Wavelength - Peak 566nm
Power Dissipation (Maximum) 105mW
Manufacturer Package 10-DIP (0.200", 5.08mm)
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 710291-HDSP-7801-JK000
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSP-7801-JK000 CAD Model

Description

The 710291-HDSP-7801-JK000 is a green 7-segment display from Broadcom Limited.

  • Millicandela Rating: 6.8mcd
  • Current Test: 10mA
  • Peak Wavelength: 566nm
  • Digit/Alpha Size: 0.30" (7.62mm)
  • Display Type: 7-segment
  • Common Pin: Common Anode
  • Package Type: 10-DIP (0.200", 5.08mm)
  • Power Dissipation (Maximum): 105mW
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 200
  • MSL Level: 1 (Unlimited)
  • Parts Dimension: 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm)
  • Voltage Forward (Vf): 2.1V
