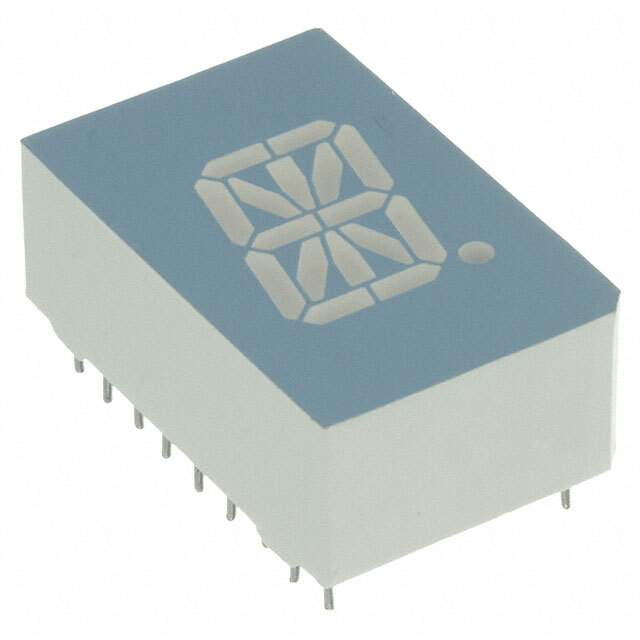

LDS-E5006RI Real Image
Same model may have multiple batches, images only for reference.

LDS-E5006RI

Part No LDS-E5006RI
Manufacturer Lumex Opto/Components Inc.
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 16SEG 0.5" SGL RED 18DIP  /  Display Modules - LED Character and Numeric Red 16-Segment, Alphanumeric 1 Character Common Anode 1.7V 10mA 0.984" H x 0.630" W x 0.374" D (25.00mm x 16.00mm x 9.50mm) 18-DIP (0.500", 12.70mm)
Datasheet
LDS-E5006RI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Lumex Opto/Components Inc.
Package Bulk
Number of Characters 1
Dimension 0.984" H x 0.630" W x 0.374" D (25.00mm x 16.00mm x 9.50mm)
Digit/Alpha Size 0.50" (12.70mm)
Display Type 16-Segment, Alphanumeric
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 1.7V
Current - Test 10mA
Millicandela Rating 6mcd
Wavelength - Peak 660nm
Power Dissipation (Max) 100mW
Package / Case 18-DIP (0.500", 12.70mm)
Base Product Number LDS-E5006
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 67-2284,LDS-E5006RI-NDR,LDS-E5006RI-ND
Standard Package 40
Win Source Part Number 1000595-LDS-E5006RI
Ultra Librarian 3D Model Ultra Librarian LDS-E5006RI CAD Model

Description

The LDS-E5006RI is a 16-Segment Alphanumeric LED Display Module from Lumex Opto/Components Inc.

  • LED Color: Red
  • Millicandela Rating: 6mcd
  • Forward Voltage: 1.7V
  • Anode/Cathode: Common Anode
  • Package/Case: 18-DIP (0.500", 12.70mm)
  • Display Type: Alphanumeric
  • Character Count: Single
  • Digit/Alpha Size: 0.50" (12.70mm)
  • Peak Wavelength: 660nm
  • Power Dissipation: 100mW
  • Dimension: 0.984" H x 0.630" W x 0.374" D (25.00mm x 16.00mm x 9.50mm)
  • Application: Display Applications
