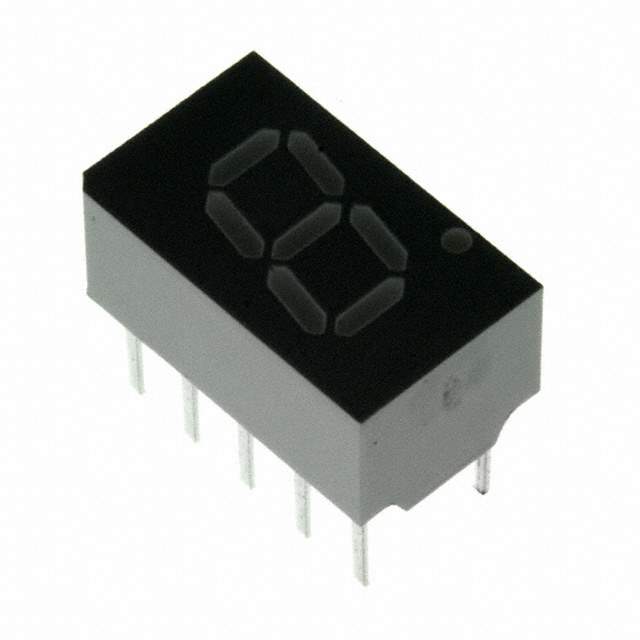

HDSP-7501-CD000 Real Image
Same model may have multiple batches, images only for reference.

HDSP-7501-CD000

Part No HDSP-7501-CD000
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description LED 7-SEG 7.6MM CA HE RED / Display Segmented Module 1DIGIT 8LED Hi-Eff. Red CA 10-Pin DIP Module Tube
Datasheet
HDSP-7501-CD000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Number of Characters 1
Dimension 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm)
Digit/Alpha Size 0.30" (7.62mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Millicandela Rating 5.39mcd
Wavelength - Peak 635nm
Power Dissipation (Maximum) 105mW
Package 10-DIP (0.200", 5.08mm)
Win Source Part Number 775833-HDSP-7501-CD000
Popularity Medium
Supply and Demand Status Limited
Family Name HDSP-7501
Introduction Date November 24, 2004
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian HDSP-7501-CD000 CAD Model

Description

The Broadcom Limited HDSP-7501-CD000 is a 7-segment display that comes in a 10-DIP package with a common anode.

  • Package: 10-DIP
  • Millicandela: 5.39mcd
  • Voltage Forward: 2V
  • Color: Red
  • Wavelength Peak: 635nm
  • Family: HDSP-7501
  • Power Dissipation: 105mW
