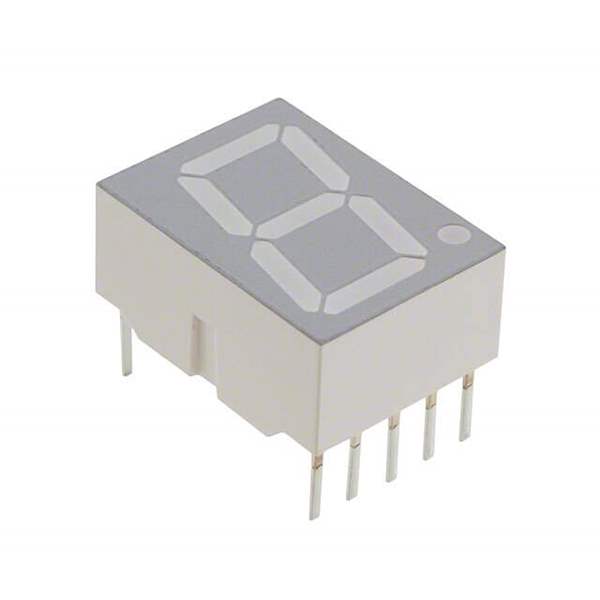

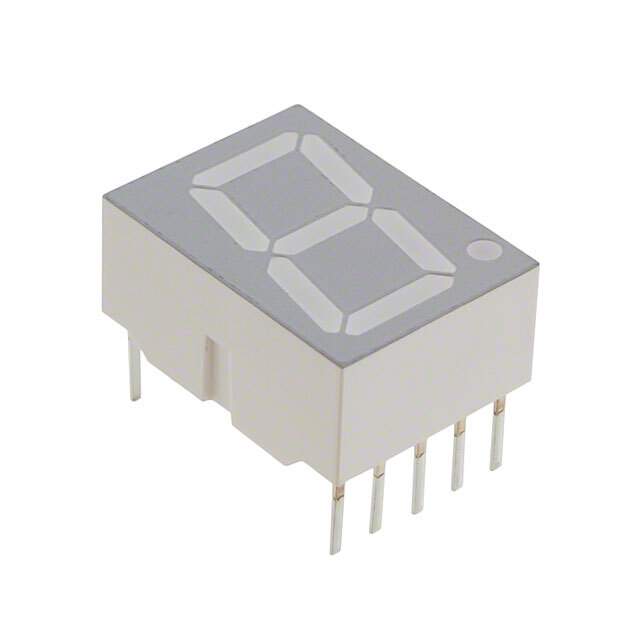

HDSP-5703 Real Image
Same model may have multiple batches, images only for reference.

HDSP-5703

Part No HDSP-5703
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.56" SGL YLW 10DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Estimated Pruduction Lead Time 19 Weeks
Features Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Cathode 2.1V 20mA 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) 10-DIP (0.600", 15.24mm)
Manufacturer Broadcom Limited
Package Bulk
Package 10-DIP (0.600", 15.24mm)
Family Name HDSP-5703
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.2000
Other Part Number 516-2739, HDSP-5703-ND, HDSP5703
Quantity per package 320
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 873458-HDSP-5703
Ultra Librarian 3D Model Ultra Librarian HDSP-5703 CAD Model

Description

The Broadcom Limited HDSP-5703 is a display module that has yellow 7-segment 1 character common cathode and can operate in a package of 10-DIP (0.600", 15.24mm).

  • Voltage: 2.1V
  • Temperature Range: -40°C to 85°C
  • Data Rate: 5MBd
  • Output Type: Open collector, Schottky clamped
  • Supply and Demand Status: Limited
  • Quantity per Package: 320
