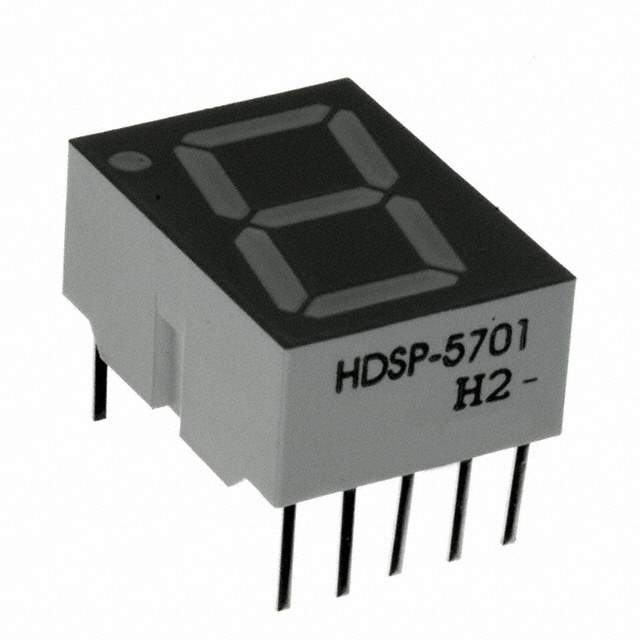

HDSP-5701 Real Image
Same model may have multiple batches, images only for reference.

HDSP-5701

Part No HDSP-5701
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.56" SGL YLW 10DIP / Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 2.1V 20mA 0.673" H x 0.495" W x 0.315" D (17.10mm x 12.57mm x 8.00mm) 10-DIP (0.600", 15.24mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Manufacturer Broadcom Limited
Packaging Bulk
Number of Characters 1
Size / Dimension 0.673" H x 0.495" W x 0.315" D (17.10mm x 12.57mm x 8.00mm)
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Anode
Color Yellow
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Millicandela Rating 1.8mcd
Wavelength - Peak 583nm
Power Dissipation (Max) 80mW
Case / Package 10-DIP (0.600", 15.24mm)
Base Product Number HDSP-570
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 516-2014,HDSP5701
Standard Package 320
Win Source Part Number 1331800-HDSP-5701
Ultra Librarian 3D Model Ultra Librarian HDSP-5701 CAD Model

Description

The HDSP-5701 is a yellow 7-segment display module from Broadcom Limited that comes in a 10-DIP package.

  • Size: 0.673" H x 0.495" W x 0.315" D (17.10mm x 12.57mm x 8.00mm)
  • Digit/Alpha Size: 0.56" (14.22mm)
  • Common Anode: Yes
  • Power Dissipation (Max): 80mW
  • Forward Voltage (Vf): 2.1V
  • Peak Wavelength: 583nm
  • Millicandela Rating: 1.8mcd
  • Character Displayed: 1
