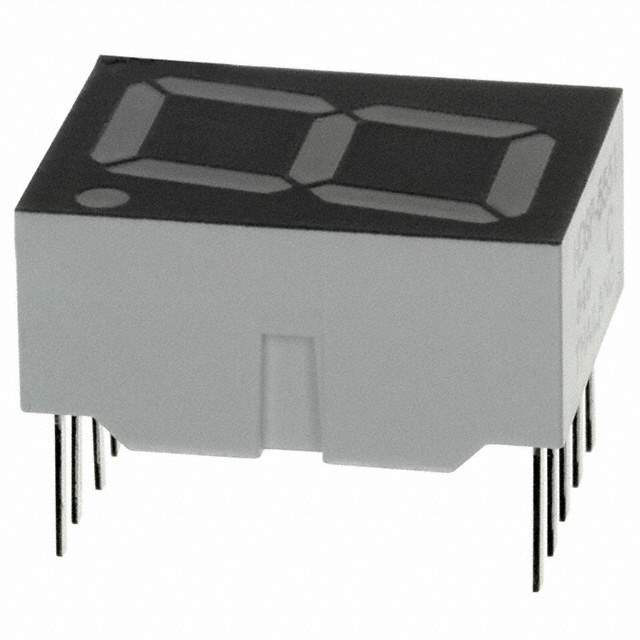

HDSP-5551 Real Image
Same model may have multiple batches, images only for reference.

HDSP-5551

Part No HDSP-5551
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.56" SGL RED 10DIP  /  Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.7V 5mA 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) 10-DIP (0.600", 15.24mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Broadcom Limited
Package Tube
Number of Characters 1
Dimension 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm)
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 1.7V
Current - Test 5mA
Millicandela Rating 1.48mcd
Wavelength - Peak 635nm
Power Dissipation (Max) 52mW
Package / Case 10-DIP (0.600", 15.24mm)
Base Product Number HDSP-5551
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.20.0040
Other Names 516-1230-5-NDR,516-1230-5,516-1230,HDSP5551,516-1230-5-ND
Standard Package 320
Win Source Part Number 1095494-HDSP-5551
Ultra Librarian 3D Model Ultra Librarian HDSP-5551 CAD Model

Description

The HDSP-5551 is a display module with a 7-segment LED character and numeric display type.

  • Millicandela Rating: 1.48mcd
  • Forward Voltage: 1.7V
  • Current Test: 5mA
  • Peak Wavelength: 635nm
  • Package: 10-DIP
  • Height: 0.670 inches
  • Width: 0.495 inches
  • Depth: 0.315 inches
  • Common Pin: Common anode
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Broadcom Limited
