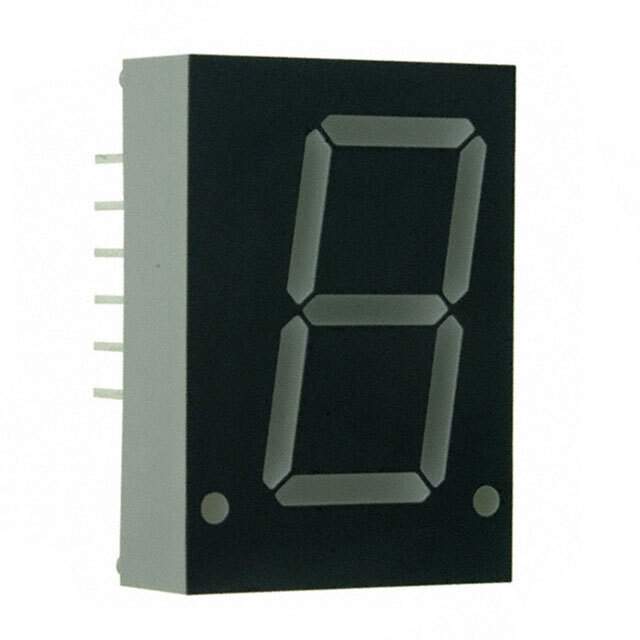

HDSP-3901 Real Image
Same model may have multiple batches, images only for reference.

HDSP-3901

Part No HDSP-3901
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description 20 mm (0.8 inch) Seven Segment Displays | LED 7-SEG 20MM CA HE RED RHD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube
Number of Characters 1
Parts Dimension 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm)
Digit/Alpha Size 0.80" (20.32mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) 2.6V
Current - Test 100mA
Millicandela Rating 7mcd
Wavelength - Peak 635nm
Power Dissipation (Maximum) 105mW
Manufacturer Package 18-DIP
Manufacturer Pack Quantity 120
MSL Level 1 (Unlimited)
Win Source Part Number 1179731-HDSP-3901
Manufacturer Homepage www.home.agilent.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSP-3901 CAD Model

Description

The HDSP-3901 is a 7-segment display manufactured by Broadcom Limited.

  • Millicandela Rating: 7mcd
  • Current-Test: 100mA
  • Peak Wavelength: 635nm
  • Common Pin: common anode
  • Package: tube
  • Color: red
  • Digit/Alpha Size: 0.80" (20.32mm)
  • Display Characters: 1
  • Category: optoelectronics
  • Maximum Power Dissipation: 105mW
  • Popularity: medium
  • Supply and Demand Status: limited
  • MSL Level: 1 (Unlimited)
  • Parts Dimension: 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm)
  • Voltage-Forward (Vf): 2.6V
