Products specifications Report Issue?

Category Optoelectronics - LED Dot Matrix and Cluster
Mfr Broadcom Limited
Series HDLx-2416
Package Tube
Product Status Active
Millicandela Rating 3.7mcd
Size / Dimension 0.99" L x 0.79" W x 0.26" H (25.15mm x 20.07mm x 6.60mm)
Color Yellow
Configuration 5 x 7
Interface 7-Bit ASCII
Base Product Number HDLY-2416
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.20.0040
Win Source Part Number 847108-HDLY-2416
Ultra Librarian 3D Model Ultra Librarian HDLY-2416 CAD Model

Description

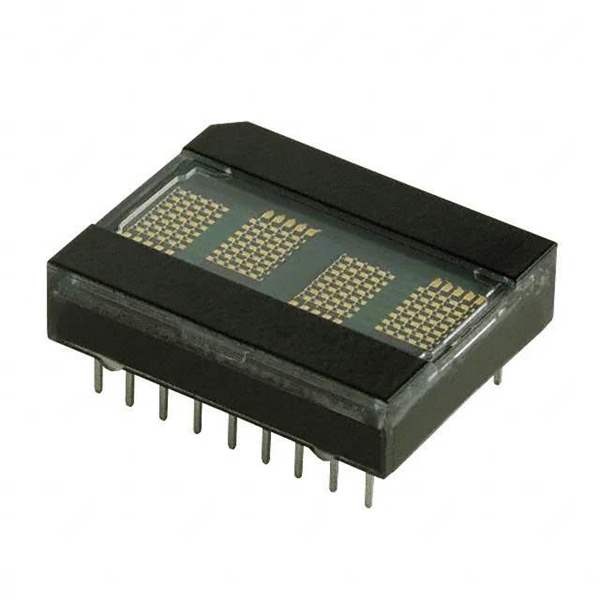

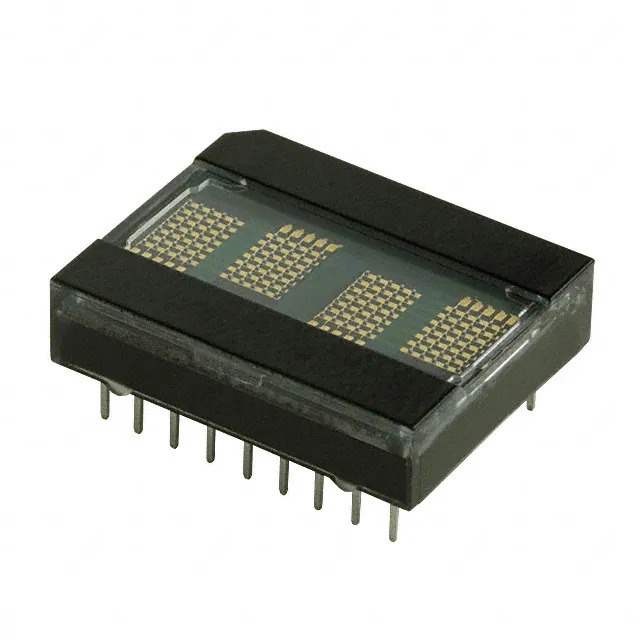

The Broadcom Limited 847108-HDLY-2416 is an LED dot matrix and cluster designed for optoelectronic applications. With a size/dimension of 0.99" L x 0.79" W x 0.26" H (25.15mm x 20.07mm x 6.60mm) and a configuration of 5 x 7, this LED cluster offers a compact and efficient solution for displaying alphanumeric characters and symbols.

  • Size/Dimension: 0.99" L x 0.79" W x 0.26" H (25.15mm x 20.07mm x 6.60mm)
  • Configuration: 5 x 7
  • Millicandela Rating: 3.7mcd
  • Moisture Sensitivity Level: 1
  • Manufacturer: Broadcom Limited
