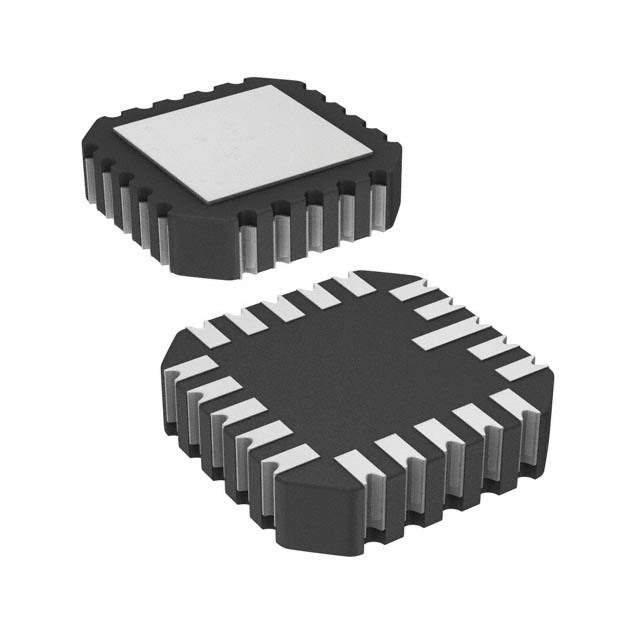

HCPL-6430 Real Image
Same model may have multiple batches, images only for reference.

HCPL-6430

Part No HCPL-6430
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 1.5KV PUSH PULL 20LCCC / Logic Output Optoisolator 40Mbps Push-Pull, Totem Pole 1500VDC 2 Channel 500V/µs CMTI 20-LCCC (8.89x8.89)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Logic Output
Mfr Broadcom Limited
Package Tube
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Voltage - Isolation 1500VDC
Common Mode Transient Immunity (Min) 500V/µs
Input Type DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 25 mA
Data Rate 40Mbps
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Rise / Fall Time (Typ) 15ns, 10ns
Voltage - Forward (Vf) (Typ) 1.35V
Current - DC Forward (If) (Max) 10mA
Voltage - Supply 4.75V ~ 5.25V
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 20-CLCC
Supplier Device Package 20-LCCC (8.89x8.89)
Base Product Number HCPL-6430
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Names 516-3936,HCPL-6430-ND
Standard Package 1
Win Source Part Number 1029562-HCPL-6430
Ultra Librarian 3D Model Ultra Librarian HCPL-6430 CAD Model

Description

The HCPL-6430 is an optoisolator logic output device manufactured by Broadcom Limited. Bold the product name (e.g., HCPL-6430) and manufacturer (e.g., Broadcom Limited).

  • Output Type: Push-pull, totem pole
  • Data Rate: 40Mbps
  • Voltage Isolation: 1500VDC
  • Common-Mode Transient Immunity: 500V/µs (Min)
  • Temperature Range: -55°C to 125°C
  • Input Type: DC
  • Current Rating: 25mA
  • Number of Channels: 2
