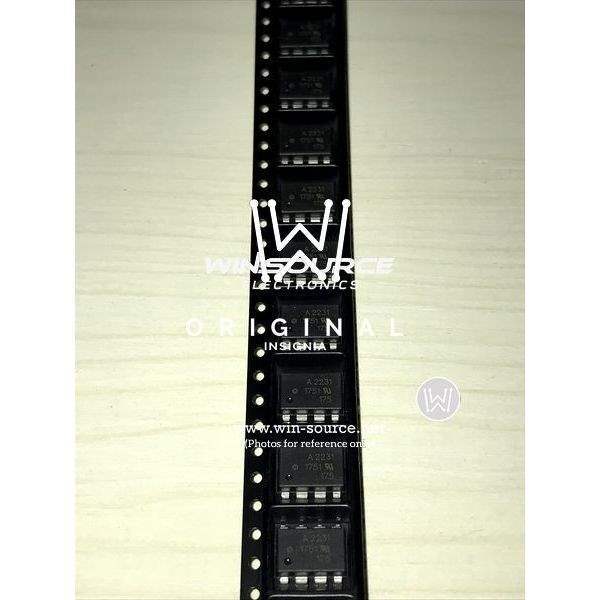

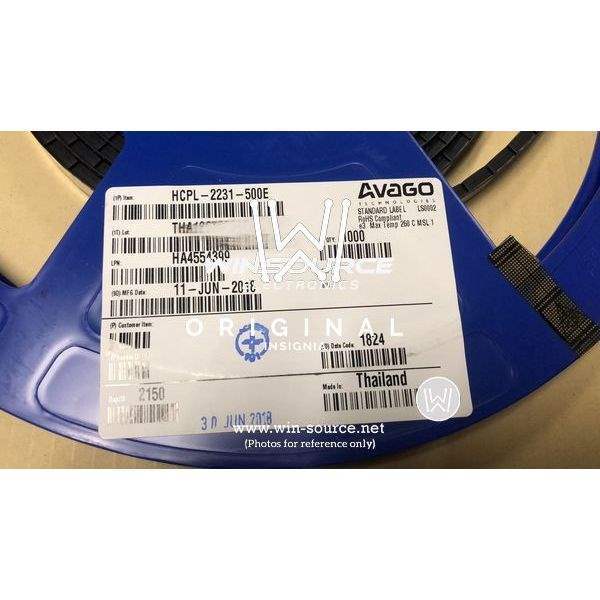

HCPL-2231-500E Broadcom Limited HCPL-2231-500E Real Image HCPL-2231-500E Real Image1 HCPL-2231-500E Real Image2 HCPL-2231-500E real image HCPL-2231-500E real image 2 HCPL-2231-500E real image 3 HCPL-2231-500E label picture 2 HCPL-2231-500E real image 4
Same model may have multiple batches, images only for reference.
HCPL-2231-500E Broadcom Limited HCPL-2231-500E Real Image HCPL-2231-500E Real Image1 HCPL-2231-500E Real Image2 HCPL-2231-500E real image HCPL-2231-500E real image 2 HCPL-2231-500E real image 3 HCPL-2231-500E label picture 2 HCPL-2231-500E real image 4
HCPL-2231-500E Broadcom Limited HCPL-2231-500E Real Image HCPL-2231-500E Real Image1 HCPL-2231-500E Real Image2 HCPL-2231-500E real image HCPL-2231-500E real image 2 HCPL-2231-500E real image 3 HCPL-2231-500E label picture 2 HCPL-2231-500E real image 4
Same model may have multiple batches, images only for reference.

HCPL-2231-500E

Part No HCPL-2231-500E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV PUSH PULL 8DIP GW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 1kV/μs
Input Type DC
Output Type Push-Pull, Totem Pole
Channel Output Current 25mA
Data Rate 5MBd
Propagation Delay tpLH / tpHL (Max) 300ns, 300ns
Rise and Fall Time 30ns, 7ns
Forward Voltage 1.5V
Continuous forward current- Max 10mA
Supply Voltage - Operating 4.5 V to 20 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-DIP Gull Wing
Win Source Part Number 016857-HCPL-2231-500E
Family Name HCPL-2231
Introduction Date January 01, 1995
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian HCPL-2231-500E CAD Model

Description

The Broadcom Limited HCPL-2231-500E is a push-pull, totem pole output type isolator that comes in an 8-DIP Gull Wing package.

  • Output Type: Push-Pull, Totem Pole
  • Package: 8-DIP Gull Wing
  • Data Rate: 5MBd
  • Forward Voltage: 1.5V
  • Channel(s): 2
  • Inputs (Side 1/Side 2): 2/0
  • Common Mode Transient Immunity: 1kV/μs
  • Propagation Delay tpLH / tpHL: 300ns / 300ns
  • Isolation Voltage: 3750Vrms
  • Channel Output Current: 25mA
  • Continuous Forward Current: 10mA (Max)
  • Product Category: Isolator
  • Supply and Demand: Balanced
  • Compliance: Halogen-Free
  • Manufactured In: Thailand
  • Quantity per Package: 1k pcs
