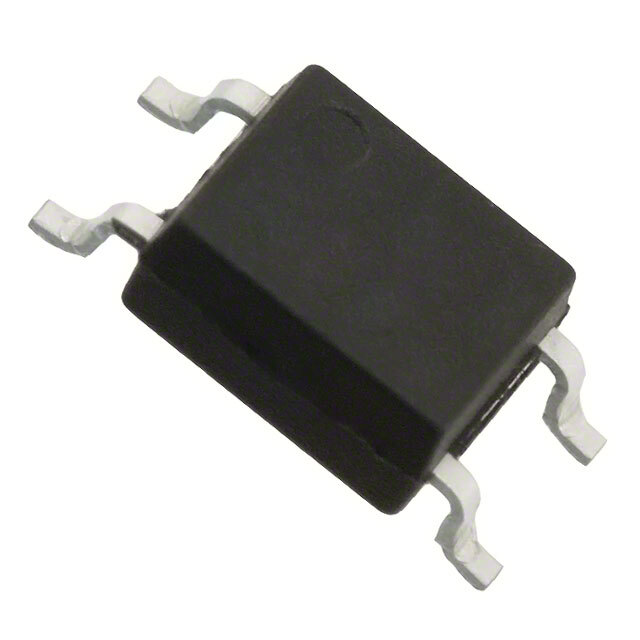

HCPL-181-06BE

Name: HCPL-181-06BE
Brand: Broadcom Limited
SKU: 141894
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HCPL-181-06BE
Manufacturer	Broadcom Limited
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISO 3.75KV TRANS 4MINIFLAT / Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin Mini-Flat T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	Broadcom Limited
Packaging	Reel - TR
Status	Active
Number of Channels	1
Isolation Voltage	3750Vrms
Minimum DC Current Transfer Ratio	130% @ 5mA
Maximum DC Current Transfer Ratio	260% @ 5mA
Rise and Fall Time	4μs, 3μs
Input Type	DC
Output Type	Transistor
Maximum Output Voltage	80V
Channel Output Current	50mA
Forward Voltage	1.2V
Continuous forward current- Max	50mA
Vce Saturation (Max)	200mV
Temperature Range - Operating	-55°C to 100°C
Mounting	SMD (SMT)
Case / Package	4-Mini-Flat
Win Source Part Number	204626-HCPL-181-06BE
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Quantity per package	3k pcs
Family Name	HCPL-181
Introduction Date	May 31, 2005
ECCN	EAR99
Country of Origin	China
Halogen Free	Not Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian HCPL-181-06BE CAD Model

Alternative Products

Description

The Broadcom Limited 204626-HCPL-181-06BE is a transistor output type isolator in a surface-mount package.

Input Type: DC
Channels: 1
Forward Voltage: 1.2V
Isolation Voltage: 3750Vrms
DC Current Transfer Ratio: 130% (min) / 260% (max) @ 5mA
Channel Output Current: 50mA
Continuous Forward Current: 50mA
Operating Temperature: -55°C to 100°C
Rise/Fall Time: 4μs / 3μs
Compliance: Not Halogen-Free
Supply/Demand: Limited
