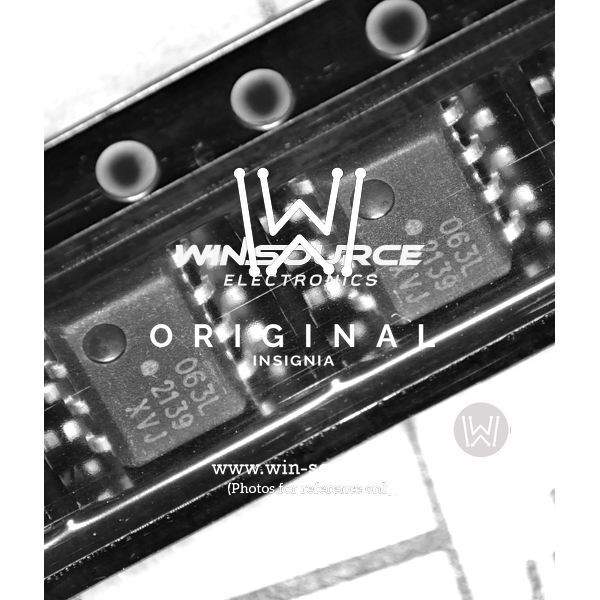

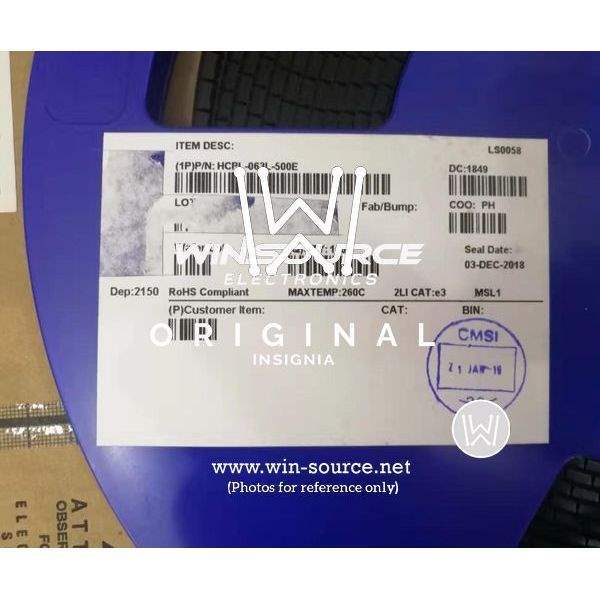

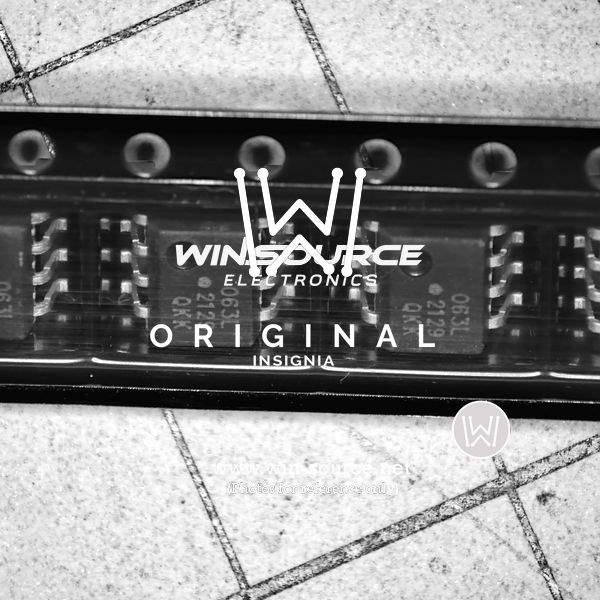

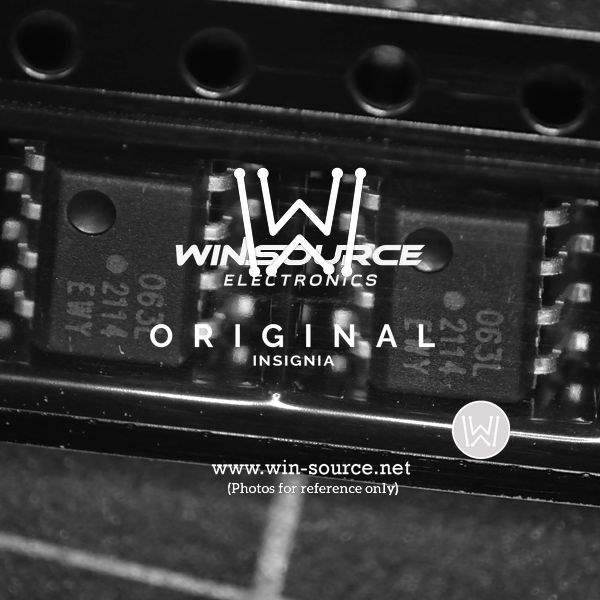

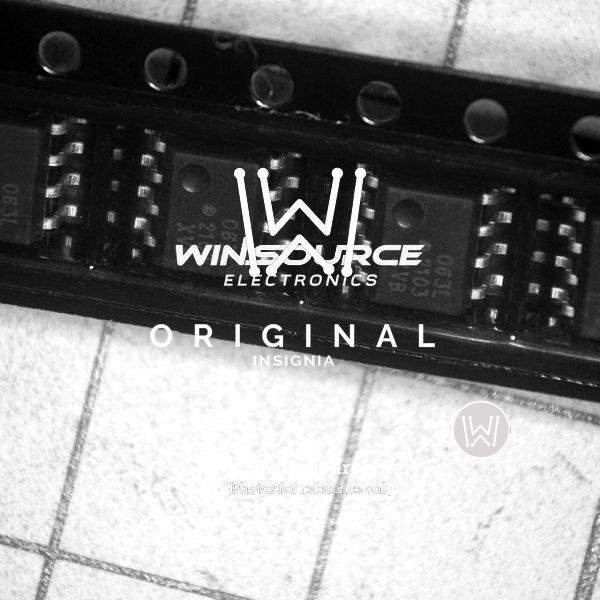

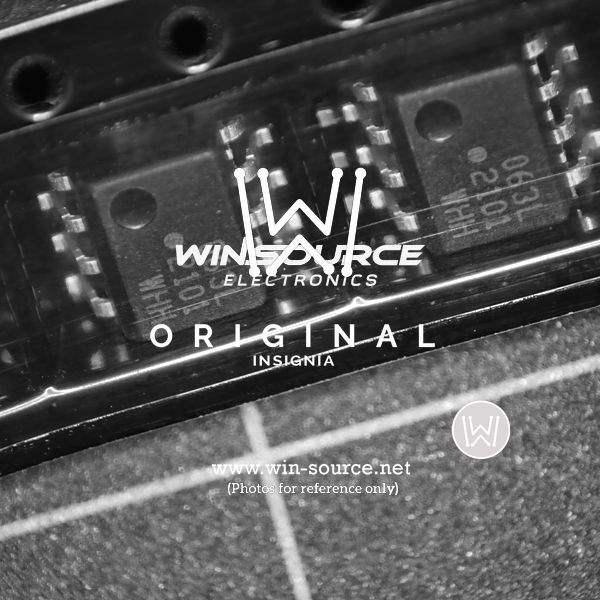

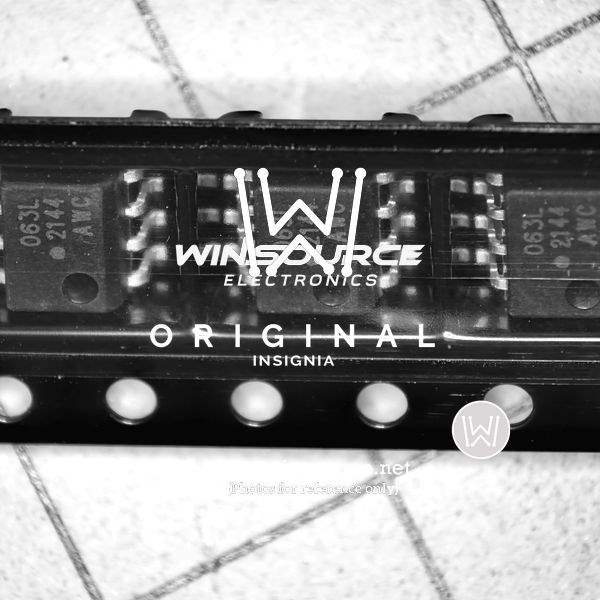

Same model may have multiple batches, images only for reference.
HCPL-063L-500E Broadcom Limited HCPL-063L-500E Real Image HCPL-063L-500E label picture HCPL-063L-500E real image4547 HCPL-063L-500E real image4548 HCPL-063L-500E Real Image1 HCPL-063L-500E Real Image2 HCPL-063L-500E Real Image3 HCPL-063L-500E Real Image4 HCPL-063L-500E Real Image5
HCPL-063L-500E Broadcom Limited HCPL-063L-500E Real Image HCPL-063L-500E label picture HCPL-063L-500E real image4547 HCPL-063L-500E real image4548 HCPL-063L-500E Real Image1 HCPL-063L-500E Real Image2 HCPL-063L-500E Real Image3 HCPL-063L-500E Real Image4 HCPL-063L-500E Real Image5
Same model may have multiple batches, images only for reference.

HCPL-063L-500E

Part No HCPL-063L-500E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV 2CH OPEN COLL 8SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 10kV/μs
Input Type DC
Output Type Open Collector, Schottky Clamped
Channel Output Current 50mA
Data Rate 15MBd
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise and Fall Time 24ns, 10ns
Forward Voltage 1.5V
Continuous forward current- Max 15mA
Supply Voltage - Operating 2.7 V to 3.6 V, 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SO Tall
Win Source Part Number 016840-HCPL-063L-500E
Family Name HCPL-063L
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin Philippines, Singapore
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Power Management, Motor Drive & Control, Industrial, Computers & Computer Peripherals
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian HCPL-063L-500E CAD Model

Description

The Broadcom Limited 016840-HCPL-063L-500E is an optocoupler with an open collector and Schottky clamped output.

  • Output Type: Open Collector, Schottky Clamped
  • Data Rate: 15MBd
  • Forward Voltage: 1.5V
  • Common Mode Transient Immunity: 10kV/μs
  • Propagation Delay (tpLH / tpHL Max): 75ns / 75ns
  • Isolation Voltage: 3750Vrms
  • Temperature Range: -40°C to 85°C
  • Package: 8-SO Tall
  • Supply Voltage: 2.7V to 3.6V, 4.5V to 5.5V
  • Rise and Fall Time: 24ns / 10ns
  • Channel Output Current: 50mA
  • Continuous Forward Current: 15mA
  • Applications: Power management, motor drive and control, industrial, computers and computer peripherals
