Same model may have multiple batches, images only for reference.

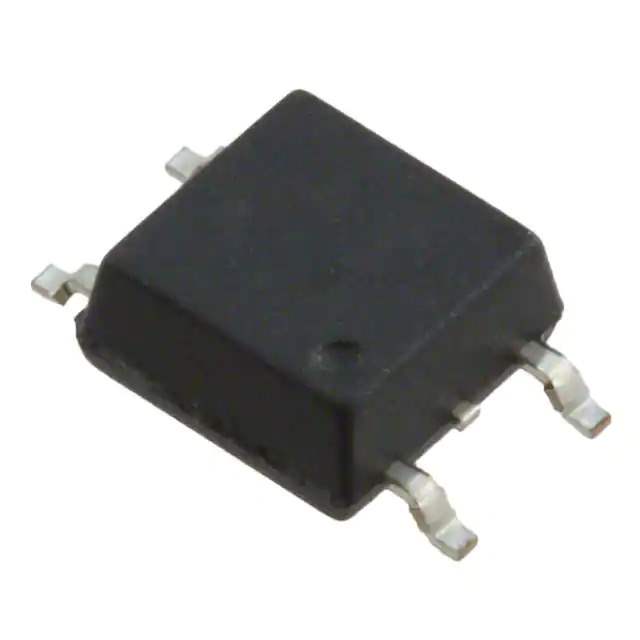

ASSR-301C-003E Real Image
Same model may have multiple batches, images only for reference.

ASSR-301C-003E

Part No ASSR-301C-003E
Manufacturer Broadcom Limited
Catalog Solid State Relays
Description SSR RELAY SPST-NO 50MA 0-250V / Solid State SPST-NO (1 Form A) 4-SOP (0.173", 4.40mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Broadcom Limited
Series ASSR
Package Tube
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.3VDC
Voltage - Load 0 V ~ 250 V
Load Current 50 mA
On-State Resistance (Max) 50 Ohms
Termination Style Gull Wing
Package / Case 4-SOP (0.173", 4.40mm)
Supplier Device Package 4-SO
Base Product Number ASSR-301
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 565015-ASSR-301C-003E
Ultra Librarian 3D Model Ultra Librarian ASSR-301C-003E CAD Model

Description

The 565015-ASSR-301C-003E is a solid-state relay from Broadcom Limited.

  • Product Name: 565015-ASSR-301C-003E
  • Manufacturer: Broadcom Limited
  • Type: Solid-State Relay
  • Input Voltage: 1.3VDC
  • On-State Resistance: 50 Ohms
  • Circuit Configuration: SPST-NO (1 Form A)
  • Mounting Type: Surface Mount
  • Package: 4-SOP
  • Standard Package: 100 pcs
  • Status: Obsolete
