Same model may have multiple batches, images only for reference.

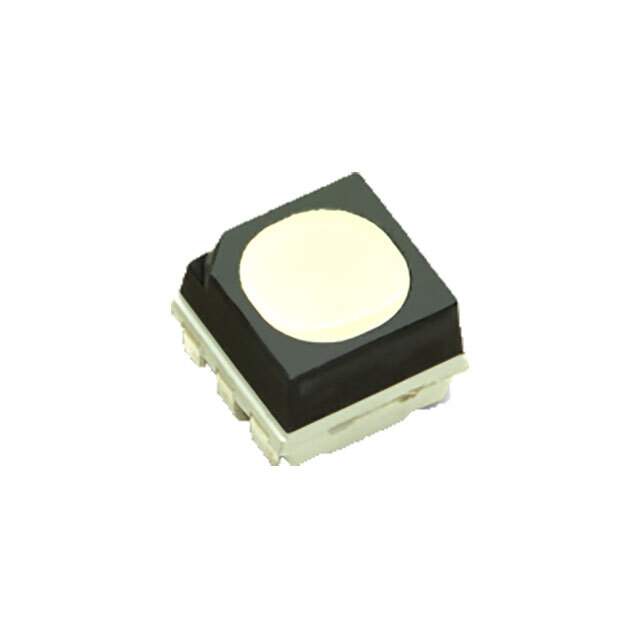

ASMB-TTF2-0B20B Real Image
Same model may have multiple batches, images only for reference.

ASMB-TTF2-0B20B

Part No ASMB-TTF2-0B20B
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RGB DIFFUSED 6PLCC SMD / Red, Green, Blue (RGB) 620nm Red, 524nm Green, 471nm Blue LED Indication - Discrete 2.1V Red, 2.9V Green, 2.9V Blue 6-PLCC
Datasheet
ASMB-TTF2-0B20B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Broadcom Limited
Package Tape & Reel
Color Red, Green, Blue (RGB)
Lens Transparency Diffused
Millicandela Rating 860mcd Red, 2200mcd Green, 455mcd Blue
Lens Style Round with Flat Top
Voltage - Forward (Vf) (Typ) 2.1V Red, 2.9V Green, 2.9V Blue
Current - Test 20mA
Viewing Angle 110°
Mounting SMD (SMT)
Wavelength - Dominant 620nm Red, 524nm Green, 471nm Blue
Wavelength - Peak 628nm Red, 518nm Green, 467nm Blue
Package / Case 6-PLCC
Supplier Device Package 6-PLCC
Dimension 3.70mm L x 3.50mm W
Height (Max) 3.00mm
Base Product Number ASMB-TTF2
MSL Level 5A (24 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-3909-1,516-3909-2,ASMB-TTF2-0B20B-ND,516-3909-6
Standard Package 3,000
Win Source Part Number 1099165-ASMB-TTF2-0B20B
Ultra Librarian 3D Model Ultra Librarian ASMB-TTF2-0B20B CAD Model

Description

The ASMB-TTF2-0B20B is an optoelectronic component manufactured by Broadcom Limited.

  • Component Type: LED indication - discrete
  • Viewing Angle: 110-degrees
  • Colors: Red, Green, and Blue (RGB)
  • Lens Transparency: diffused
  • Millicandela Rating: 860mcd for Red, 2200mcd for Green, and 455mcd for Blue
  • Voltage-Forward (Vf): 2.1V for Red and 2.9V for Green and Blue
  • Win Source Part Number: 1099165-ASMB-TTF2-0B20B
  • Package: Tape and reel
  • Standard Package: 3,000
  • Height: 3.00mm
  • Package/Case: 6-PLCC
  • Supplier Device Package: 6-PLCC
  • MSL Level: 5A (24 hours)
  • REACH: Unaffected
  • Alternative Parts: Not available
