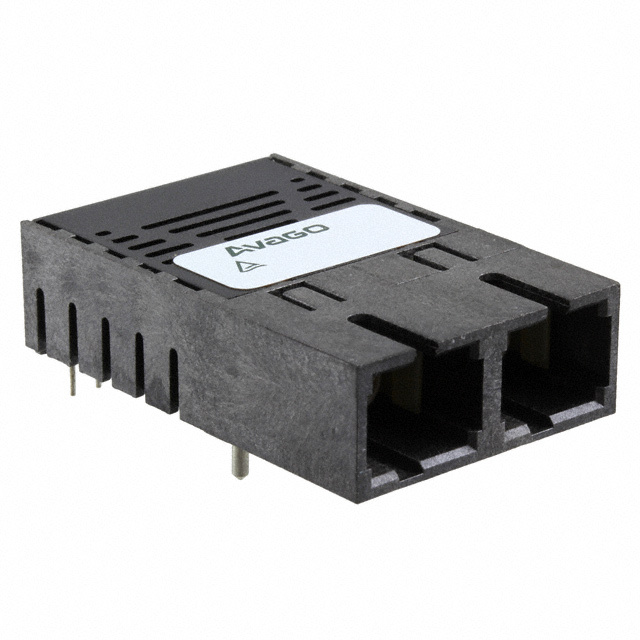

AFBR-5805AZ Broadcom Limited
Same model may have multiple batches, images only for reference.

AFBR-5805AZ

Part No AFBR-5805AZ
Manufacturer Broadcom Limited
Catalog Fiber Optics - Transceiver Modules
Description TXRX ATM SONET OC3 3V SC 1X9 / Transceiver Module General Purpose 1310nm 3.3V SC Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Fiber Optic Transceiver Modules
Mfr Broadcom Limited
Package Bulk
Product Status Active
Wavelength 1310nm
Applications General Purpose
Voltage - Supply 3.3V
Connector Type SC
Mounting Type Through Hole
Base Product Number AFBR-5805
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A991B5A
HTSUS 8517.62.0090
Win Source Part Number 560181-AFBR-5805AZ
Ultra Librarian 3D Model Ultra Librarian AFBR-5805AZ CAD Model

Description

The AFBR-5805AZ is a fiber optic transceiver module from Broadcom Limited.

  • Application: general-purpose
  • Wavelength: 1310nm
  • Connector Type: SC
  • Package: bulk
  • Standard Package: 10 pieces
  • Voltage Supply: 3.3V
  • Mounting: through-hole
  • Product Status: active
