Same model may have multiple batches, images only for reference.

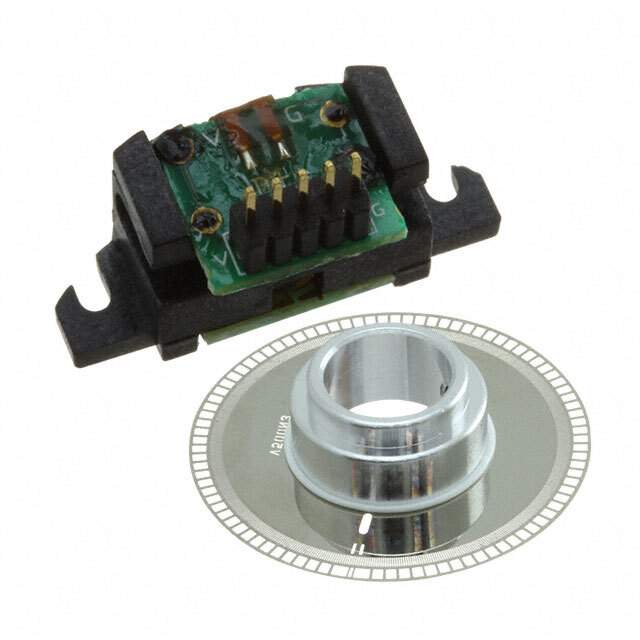

AEDB-9140-A13 Real Image
Same model may have multiple batches, images only for reference.

AEDB-9140-A13

Part No AEDB-9140-A13
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 500PPR  /  Rotary Encoder Optical 500 Quadrature with Index (Incremental)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Encoders
Mfr Broadcom Limited
Series AEDB-9140
Package Bulk
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 500
Voltage - Supply 5V
Actuator Type 8mm Open Center
Detent No
Built in Switch No
Mounting Type Chassis Mount, Motors
Termination Style Terminal Pins
Base Product Number AEDB-9140
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Other Names 516-3634,AEDB-9140-A13-ND
Standard Package 100
Win Source Part Number 1202076-AEDB-9140-A13
Ultra Librarian 3D Model Ultra Librarian AEDB-9140-A13 CAD Model

Description

The AEDB-9140 series optical encoder from Broadcom Limited is a reliable and accurate component for your motion control applications.

  • Output Type: Quadrature
  • Pulses per Revolution: 500
  • Actuator Type: 8mm Open Center
  • Voltage Supply: 5V
  • Mounting: Chassis and Motor
  • Encoder Type: Optical
  • Package: Bulk
  • Termination Style: Terminal Pins
  • Encoder Features: Incremental, Quadrature Output and Index
  • Built-in Switch: No
  • Detent: No
