Same model may have multiple batches, images only for reference.

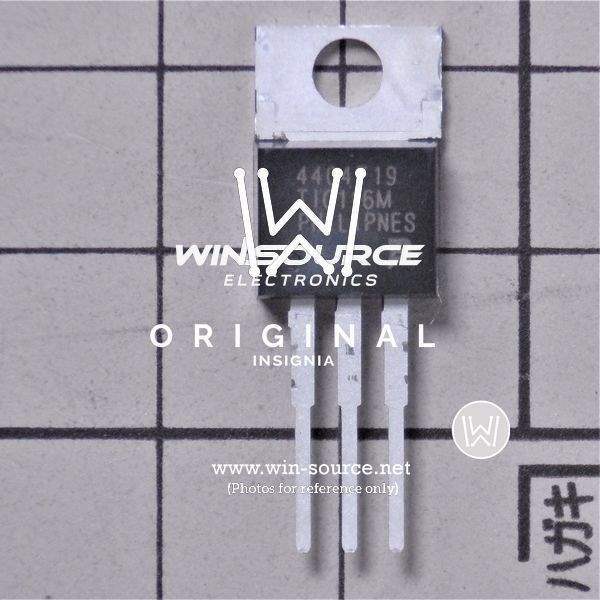

TIC116M-S real image
Same model may have multiple batches, images only for reference.

TIC116M-S

Part No TIC116M-S
Manufacturer Bourns Inc.
Catalog SCRs - Single
Description DIODE RECTIFIER 600V 8A TO220 / Thyristor SCR 600V 80A 3-Pin(3+Tab) TO-220
Datasheet
TIC116M-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Bourns Inc.
Packaging Tube
Part Status Obsolete(EOL)
Voltage - Off State 600V
Voltage - Gate Trigger (Vgt) (Maximum) 1.5V
Current - Gate Trigger (Igt) (Maximum) 20mA
Voltage - On State (Vtm) (Maximum) 1.7V
Current - On State (It (AV)) (Maximum) 5A
Current - On State (It (RMS)) (Maximum) 8A
Current - Hold (Ih) (Maximum) 40mA
Current - Off State (Maximum) 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 80A @ 50Hz
SCR Type Standard Recovery
Operating Temperature Range -40°C ~ 110°C
Mounting Style Through Hole
Package TO-220-3
Manufacturer Package TO-220
Win Source Part Number 796761-TIC116M-S
Popularity Medium
Supply and Demand Status Limited
Family Name TIC116M
Introduction Date May 23, 1993
Country of Origin Philippines
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian TIC116M-S CAD Model

Description

The Bourns Inc. TIC116M-S is a standard recovery SCR type electronic component from Bourns Inc. that comes in a TO-220-3 package.

  • Off-State Voltage: 600V
  • Maximum On-State Current: 8A
  • Gate Trigger Voltage: 1.5V
  • Maximum Gate Trigger Current: 20mA
  • Maximum Non-Repetitive Surge Current: 80A @ 50Hz
  • Operating Temperature: -40°C to 110°C
  • Maximum On-State Voltage: 1.7V
  • Maximum Off-State Current: 2mA
  • Part Status: Obsolete (EOL)
  • Alternative Parts: TYN608G, TXN608G, NTE5351
