Same model may have multiple batches, images only for reference.

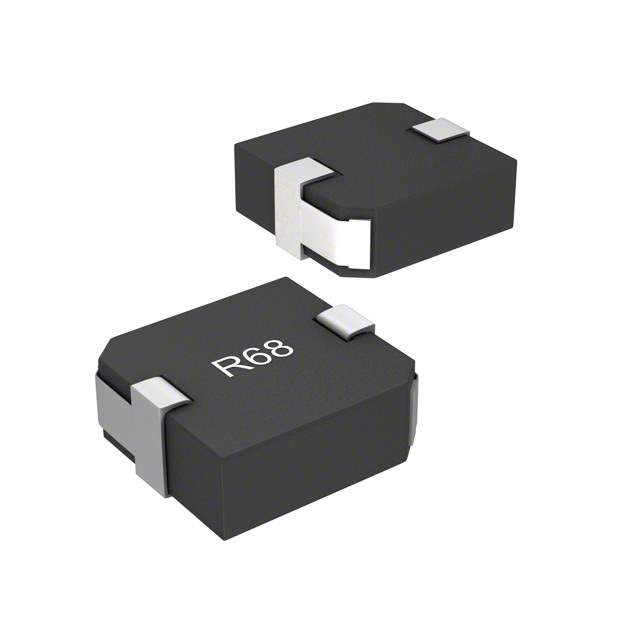

SRP1040-R20M Real Image
Same model may have multiple batches, images only for reference.

SRP1040-R20M

Part No SRP1040-R20M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description SRP1040 Series - Shielded Power Inductors
Datasheet
SRP1040-R20M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series SRP1040
Packaging Reel - TR
Material - Core Iron
Inductance 200nH
Tolerance ±20%
Current Rating 32A
Current - Saturation 40A
Shielding Shielded
DC Resistance (DCR) 1 mOhm Max
Operating Temperature Range -55°C ~ 150°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.465" L x 0.413" W (11.80mm x 10.50mm)
Height - Seated (Maximum) 0.165" (4.20mm)
Win Source Part Number 1258789-SRP1040-R20M
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Family Name SRP1040
Introduction Date October 28, 2008
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2019
Ultra Librarian 3D Model Ultra Librarian SRP1040-R20M CAD Model

Description

The SRP1040-R20M is an electronic component manufactured by Bourns Inc.

  • Manufacturer: Bourns Inc.
  • Series: SRP1040
  • Popularity: Medium
  • Win Source Part Number: 1258789-SRP1040-R20M
  • Component Type: Inductor, Coil, Choke
  • Current Rating: 32A
  • Inductance: 200nH
  • Mounting Type: Surface-mount
  • Tolerance: +/-20%
  • DC Resistance: 1 mOhm max
  • Size: 0.465 inches L x 0.413 inches W (11.80mm x 10.50mm)
