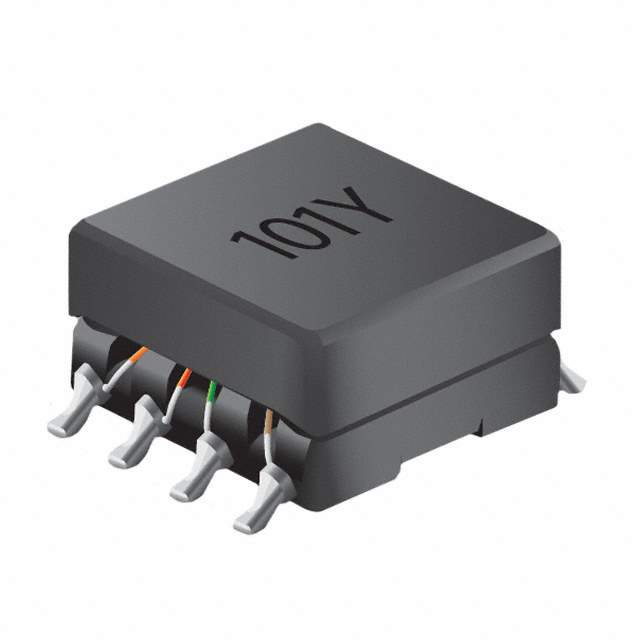

SRF1306-600Y Real Image
Same model may have multiple batches, images only for reference.

SRF1306-600Y

Part No SRF1306-600Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Datasheet
SRF1306-600Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF1306
Package Tape & Reel
Number of Lines 2
Impedance @ Frequency 600 Ohms @ 5 MHz
Inductance @ Frequency 60 µH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 65mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 105°C
Mounting SMD (SMT)
Dimension 0.413" L x 0.374" W (10.50mm x 9.50mm)
Height (Max) 0.238" (6.05mm)
Package / Case 8-SMD, Gull Wing
Base Product Number SRF1306
Other Names SRF1306-600Y,118-SRF1306-600YCT,118-SRF1306-600YTR,118-SRF1306-600YDKR
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277151-SRF1306-600Y
Ultra Librarian 3D Model Ultra Librarian SRF1306-600Y CAD Model

Description

The SRF1306-600Y is a common mode choke from Bourns Inc.

  • Series: SRF1306
  • Filter Application: Filter
  • Package: Tape and Reel
  • Voltage Rating: 50V DC
  • Current Rating (Max): 2A
  • Standard Package: 600
  • Mounting Type: Surface Mount
  • Package / Case: 8-SMD, Gull-Wing
  • Height: 0.238 inches
  • Dimension: 0.413 inches in length and 0.374 inches in width
  • Impedance @ Frequency: 600 Ohms @ 5 MHz
  • Inductance @ Frequency: 60 μH @ 100 kHz
  • DC Resistance (DCR): 65mOhm
  • Temperature Range - Operating: -40°C to 105°C
