Overview of MSP430F5658IZQWT

The MSP430F5658IZQWT is a high-performance microcontroller unit (MCU) from Texas Instruments, designed for industrial and consumer applications that require low power consumption and high integration. This MCU is part of the MSP430 family, which is renowned for its ultra-low power performance and versatile peripherals, making it an ideal choice for battery-powered and energy-harvesting systems.

Key Features

• Low Power Consumption: The MSP430F5658IZQWT excels in power efficiency with its ultra-low power active and standby modes, ensuring extended battery life for portable devices.
• Advanced Clock System: A sophisticated clock system supports multiple clock sources and allows for dynamic clock management, optimizing power consumption for various operational modes.
• Robust Memory: Equipped with 256KB of flash memory and 18KB of RAM, this MCU can handle complex applications and data-intensive tasks without compromising performance.
• Digital and Analog Peripherals: A diverse set of peripherals, including digital I/O, ADCs, DACs, timers, and communication interfaces such as UART, SPI, and I2C, provide the flexibility needed for a wide range of applications.
• Integrated Security Features: Security features such as hardware encryption and a 32-bit hardware multiplier enhance data protection and facilitate secure data processing.

Applications

The MSP430F5658IZQWT is well-suited for applications that demand low power consumption and high precision, such as:

• Sensor systems
• Portable medical devices
• Energy management
• Wireless monitoring
• Smart grid infrastructure

Package and Quality

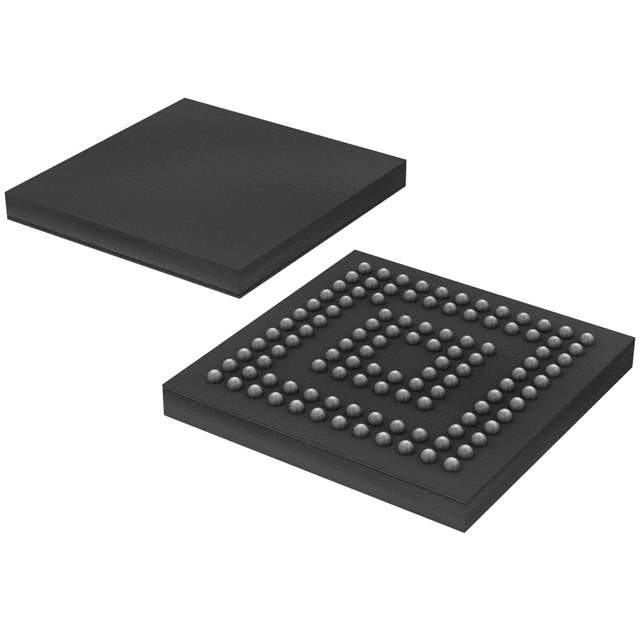

This microcontroller comes in a compact 113-pin BGA (Ball Grid Array) package, which allows for efficient space utilization on printed circuit boards. Texas Instruments ensures high manufacturing standards, providing a reliable and consistent performance for the MSP430F5658IZQWT.

In conclusion, the MSP430F5658IZQWT from Texas Instruments is a powerful and versatile MCU that meets the needs of modern, energy-conscious electronics, offering a perfect blend of low power operation, robust memory, and a wide array of peripherals, all packed in a space-saving design.
