Same model may have multiple batches, images only for reference.

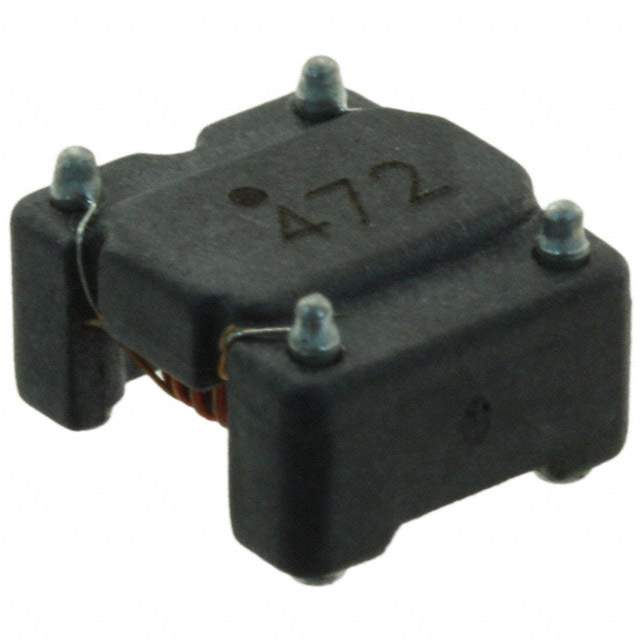

SRF1006-501Y Real Image
Same model may have multiple batches, images only for reference.

SRF1006-501Y

Part No SRF1006-501Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 500UH 840MA 2LN 800 OHM SMD / 500 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 800 Ohms @ 2 MHz 840mA DCR 70mOhm
Datasheet
SRF1006-501Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF1006
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 800 Ohms @ 2 MHz
Inductance @ Frequency 500 µH @ 100 kHz
Current Rating (Max) 840mA
DC Resistance (DCR) (Max) 70mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 105°C
Mounting SMD (SMT)
Dimension 0.394" L x 0.343" W (10.00mm x 8.70mm)
Height (Max) 0.256" (6.50mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF1006
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names SRF1006-501Y-ND,SRF1006-501YTR,SRF1006-501YDKR,SRF1006-501YCT
Standard Package 800
Win Source Part Number 961456-SRF1006-501Y
Ultra Librarian 3D Model Ultra Librarian SRF1006-501Y CAD Model

Description

The SRF1006-501Y is a common mode choke that is part of the SRF1006 series.

  • Type: Signal Line Filter
  • Maximum DC Resistance: 70mOhm
  • Mounting: Surface Mount Device
  • Manufacturer: Bourns Inc.
