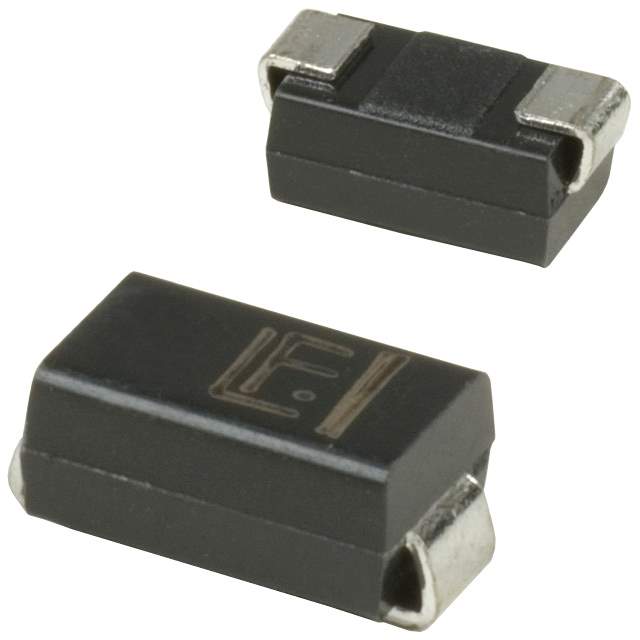

SMAJ22A

Name: SMAJ22A
Brand: Bourns Inc.
SKU: 327561
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMAJ22A
Manufacturer	Bourns Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 22VWM 35.5VC DO214AC
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Bourns Inc.
Standard Package	1
Category	Circuit Protection
Family	TVS - Diodes
Series	SMAJ
Packaging	Reel
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	11.3A
Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Operating Temperature Range	-55°C ~ 150°C (TJ)
Mounting Style	SMD/SMT
Package	DO-214AC SMA
Manufacturer Device Package	SMA (DO-214AC)
Catalog	SMAJ Series
Win Source Part Number	064785-SMAJ22A
Popularity	Medium
Supply and Demand Status	Sufficient
Package	Tape & Reel (TR)
Product Status	Active
Current - Peak Pulse (10/1000µs)	11.2A
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)
Package	Tape & Reel (TR);Tape & Reel (TR);Cut Tape (CT)
Operating Temperature	-65°C ~ 150°C (TJ)
Ultra Librarian 3D Model	Ultra Librarian SMAJ22A CAD Model

Alternative Products

Description

The Bourns Inc. Zener diode, part of the SMAJ series, is a high-quality TVS diode that is ideal for general purpose applications.

Channel: unidirectional channel
Reverse standoff voltage: 22V
Breakdown voltage: 24.4V
Voltage clamping @ Ipp: 35.5V
Peak pulse power: 400W
Current peak pulse: 11.3A
Standard package: 1
Operating temperature range: -55°C to 150°C (TJ)
Package: DO-214AC SMA package
Packaging: a reel
Mounting style: SMD/SMT
Supply and demand status: sufficient
