Same model may have multiple batches, images only for reference.

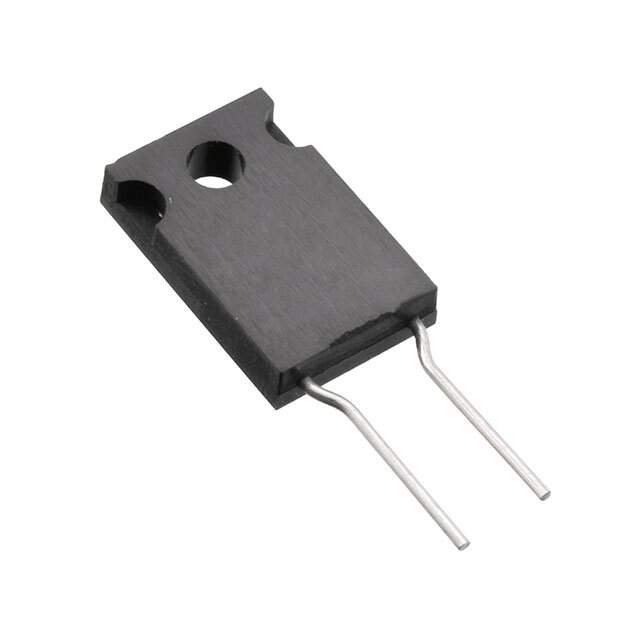

PWR221T-30-1002J Real Image
Same model may have multiple batches, images only for reference.

PWR221T-30-1002J

Part No PWR221T-30-1002J
Manufacturer Bourns Inc.
Catalog Through Hole Resistors
Description RES 10K OHM 5% 30W TO220-2 / 10 kOhms ±5% 30W Through Hole Resistor TO-220-2 Full Pack Automotive AEC-Q200, Current Sense, Pulse Withstanding Thick Film
Datasheet
PWR221T-30-1002J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Bourns Inc.
Series PWR221T-30
Package Tube
Resistance 10 kOhms
Tolerance ±5%
Power (Watts) 30W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -50°C ~ 150°C
Package / Case TO-220-2 Full Pack
Supplier Device Package TO-220-2
Dimension 0.410" L x 0.125" W (10.41mm x 3.18mm)
Height - Seated (Max) 0.760" (19.30mm)
Number of Terminations 2
Base Product Number PWR221T
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Standard Package 50
Win Source Part Number 1205184-PWR221T-30-1002J
Ultra Librarian 3D Model Ultra Librarian PWR221T-30-1002J CAD Model

Description

The PWR221T-30-1002J is a thick film resistor with a resistance of 10 kOhms and a power rating of 30W.

  • Resistance: 10 kOhms
  • Power Rating: 30W
  • Application: automotive
  • AEC-Q200 Compliant: yes
  • Pulse-withstanding: yes
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Terminations: 2
  • Package/Case: TO-220-2 Full Pack
  • Supplier Device Package: TO-220-2
  • Seated Height: 0.760" (19.30mm)
  • Dimension: 0.410" L x 0.125" W (10.41mm x 3.18mm)
  • Temperature Range: -50°C to 150°C
  • Series: PWR221T-30
  • Packaging: tube of 50 units
