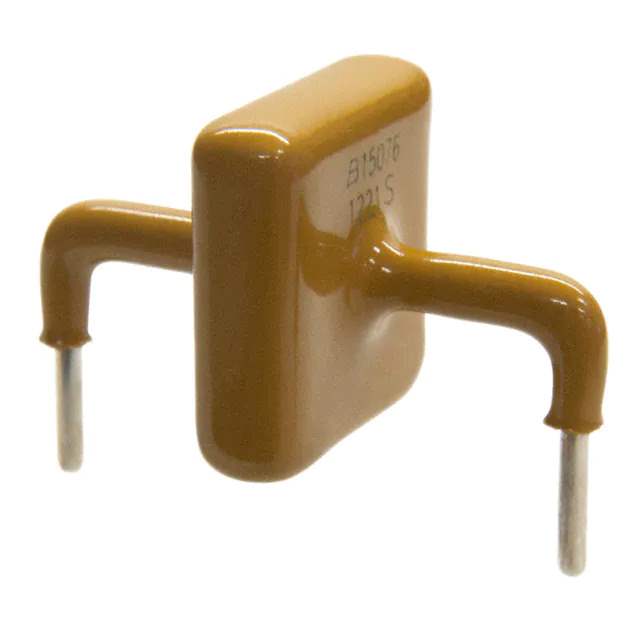

PTVS15-076C-TH

Name: PTVS15-076C-TH
Brand: Bourns Inc.
SKU: 658036
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTVS15-076C-TH
Manufacturer	Bourns Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 76VWM 150VC AXIAL
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Bourns Inc.
Series	PTVS
Package	Tray
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	76V (Max)
Voltage - Breakdown (Min)	85V
Voltage - Clamping (Max) @ Ipp	150V
Current - Peak Pulse (10/1000µs)	15000A (15kA) (8/20µs)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	9000pF @ 10kHz
Temperature Range - Operating	-55°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package	Axial
Base Product Number	PTVS15
Standard Package	10 pcs
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	658036-PTVS15-076C-TH
Ultra Librarian 3D Model	Ultra Librarian PTVS15-076C-TH CAD Model

Alternative Products

Description

The PTVS15-076C-TH is a bidirectional zener type transient voltage suppressor diode from Bourns Inc. It is designed for general purpose circuit protection applications.

Reverse Standoff Voltage: 76V
Breakdown Voltage: 85V
Peak Pulse Power: 15kA (8/20µs)
Capacitance: 9000pF @ 10kHz
Device Type: Through hole
Package: Axial package with a right angle bend
Packaging: Tray
Standard Package Quantity: 10 pcs
Temperature Range: -55°C to 125°C (TJ)
Compliance: REACH regulations
ECCN: EAR99
Product Status: Active
